Surge Tolerant MOS Capacitors 100V Single Layer 470 pF Capacitor Chip for Aerospace Power Systems

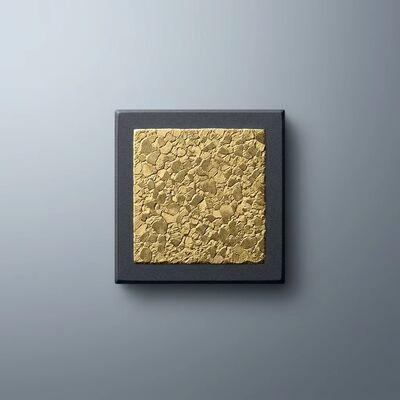

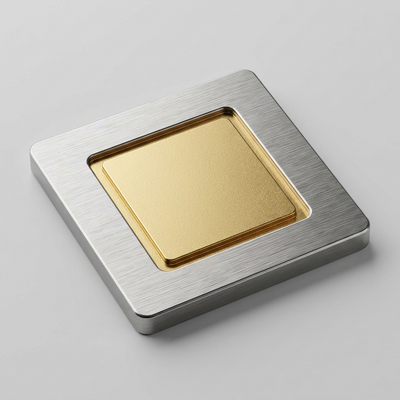

Surge Tolerant MOS Capacitor HACC471S100V470 — 470 pF 100 V Single Layer Chip for Aerospace Power Systems

Product definition: The HACC471S100V470 is a surge-tolerant single-layer MOS capacitor with 470 pF ±10% capacitance and a 100 V DC rating. It is built on high-resistivity float-zone silicon (>1000 Ω·cm) with a 300 nm thermal SiO₂ dielectric and a TiW-Au top / TiW-Pt-Au backside metallization system, in a 0.50 × 0.50 × 0.15 mm wire-bondable chip. It is designed for aerospace, satellite, and other high-reliability power circuits that must tolerate surge and overvoltage events and also use accurate RF simulation models.

At a Glance

• Capacitance: 470 pF ±10%
• Rated DC voltage: 100 V
• Surge withstand: 200 V (2× rated, 10/1000 µs waveform)
• Dielectric withstanding voltage: >250 V DC
• Intrinsic chip ESL: <0.05 nH, ESR <0.1 Ω @ 1 GHz
• Chip size: 0.50 × 0.50 × 0.15 mm, wire-bondable / eutectic die attach

Specifications (T = 25 °C unless noted)

Typical Applications

• Aerospace avionics DC-link and bus decoupling
• Satellite power conditioning and high-reliability supply bypass
• Transient suppression in inductive-load switching circuits
• High-reliability RF power amplifier bias networks
• Energy-harvesting and pulse-discharge circuits in harsh environments
