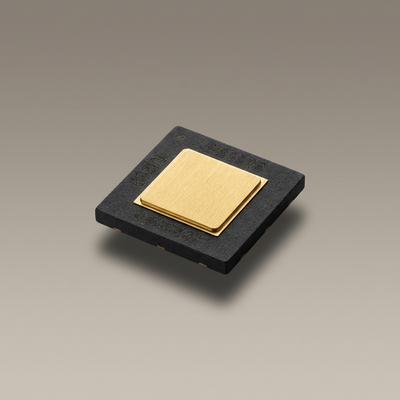

Deep Trench MOS Capacitor 1000pF 50V High Density Single Layer Chip For Stable DC Bias Operation

Deep Trench MOS Capacitor 1000pF 50V High Density Single Layer Chip For Stable DC Bias Operation

Brand Name: Hoan
Model Number: HACC102T50V601
MOQ: 10 Pieces
Payment Terms: L/C,D/A,D/P,T/T
Detail Information
Place of Origin:
Shaanxi, China
Certification:
ISO 9001:2015, RoHS
Leakage Current:
<10 NA @ 25°C; <500 NA @ 200°C (at Rated Voltage)
Insulation Resistance:
≥10⁴ MΩ @ Rated Voltage, 25°C
DC Bias Stability:
Stable C-V Under Sustained Rated DC Bias; Lot-level Bias-temperature Stress (BTS) Screening
Hot Carrier Resistance:
Low-defect Thermal SiO2 Limits Hot-carrier-induced Drift Under DC Bias
ESD Tolerance:
>2 KV HBM, Class 2 (JESD22-A114)
Operating / Storage Temperature:
-55°C To +200°C / -65°C To +150°C
Chip Dimensions:
0.50 × 0.50 × 0.18 Mm (±25 µm); Custom Geometry Up To 4:1 Aspect Ratio
Highlight:

Deep Trench MOS Capacitor 1000pF

,

High Density MOS Capacitor 50V

,

Single Layer Chip MOS Capacitor

Product Description

HACC102T50V601 Deep-Trench MOS Capacitor — 1000 pF 50 V High-Density Single Layer Chip with Bias-Stable Dielectric


The HACC102T50V601 is a 1000 pF ±10% single-layer MOS capacitor rated at 50 V DC, built on a 3D deep-trench silicon architecture in which deep trenches etched into the silicon substrate multiply the effective electrode area within the same die footprint. The capacitor delivers 1000 pF in a 0.50 mm × 0.50 mm die; for reference, planar 1000 pF MOS capacitors in this series use 0.75 mm-class die, so the trench design provides roughly twice the capacitance per unit area for space-constrained hybrid modules. A MOS capacitor is a single-layer capacitor formed by a metal-oxide-semiconductor structure (thermal silicon dioxide on a conductive silicon substrate), valued for low ESL, stable capacitance and high insulation resistance.


3D Deep-Trench Architecture for Ultra-High Volumetric Efficiency


  • Etched trench electrodes increase effective plate area per unit footprint, achieving 1000 pF at 50 V in a 0.50 × 0.50 mm outline with a 0.18 mm profile;
  • Roughly 2× area efficiency versus planar 1000 pF MOS capacitors of this series, freeing carrier area for additional die in hybrid microcircuits;
  • Full bottom-side metallization preserves maximum thermal contact and low-inductance current path despite the 3D structure;
  • Custom trench layouts, die sizes and aspect ratios (up to 4:1) are available for customer-specific footprints.


Electrical Characteristics (typical, 25°C unless noted)


Nominal Capacitance 1000 pF ±10% (1 kHz, 1.0 Vrms); ±5% available
Rated Voltage 50 V DC
Dielectric Withstanding Voltage 125 V DC (250% rated, 5 s, 100% tested)
Temperature Coefficient (TCC) +35 ppm/°C over -55°C to +200°C
Dissipation Factor ≤0.15% at 1 kHz, 1.0 Vrms
Q Factor >2000 at 1 MHz
ESR <0.1 Ω @ 1 GHz
Intrinsic Chip ESL <0.05 nH (de-embedded)
Leakage Current <10 nA at 25°C; <500 nA at 200°C (at rated voltage)
Insulation Resistance ≥104 MΩ at rated voltage, 25°C
ESD Tolerance >2 kV HBM, Class 2 per JESD22-A114
Operating / Storage Temperature -55°C to +200°C / -65°C to +150°C
Standard Die Size 0.50 × 0.50 × 0.18 mm (±25 µm); custom geometry, aspect ratio up to 4:1
Metallization TiW-Au top (≥2.5 µm Au, wire bondable); TiW-Pt-Au backside for AuSn / conductive epoxy


Typical Applications


Compact DC bias decoupling and bypass in hybrid microcircuits and multi-chip modules; RF power amplifier bias networks; space-constrained microwave assemblies; filter and timing networks requiring bias-stable capacitance; high-density energy storage in pulsed circuits.
