Understanding RF Capacitor Insertion Loss: Why Q Factor Defines Signal Chain Performance

Every RF design engineer has encountered the same frustration: a matching network that simulates beautifully in ADS or HFSS, but when measured on the bench, the insertion loss is 0.5dB worse than predicted. The culprit is almost always the capacitor — specifically, its finite quality factor (Q). At gigahertz frequencies, capacitor Q becomes the dominant loss mechanism in impedance matching networks, and selecting the right capacitor can mean the difference between passing and failing transmitter efficiency targets.

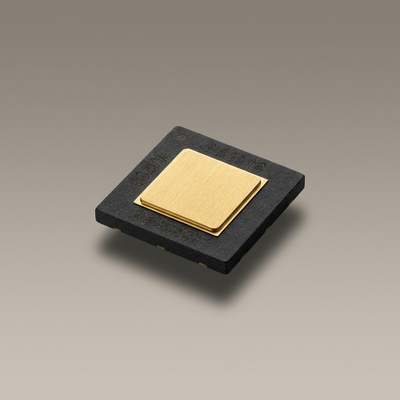

The HACC101S10V500 addresses this challenge head-on. As a Double-Sided Bordered Single Layer Ceramic Capacitor (SLC) with a rated capacitance of 100pF ±20% at 50V DC, this component delivers a minimum Q factor of 1000 at 1MHz with a dissipation factor (tan δ) of just ≤0.15% at 1kHz. In simple terms, for every watt of RF energy passing through this capacitor, less than 0.15% is converted to heat — an extraordinarily low loss figure that enables cleaner signal paths and cooler-running circuits.

Single Layer vs. Multilayer: The Physics of Low ESR

Why does a single-layer capacitor outperform an MLCC at high frequency? The answer lies in the current path geometry. In a multilayer ceramic capacitor (MLCC), current must traverse multiple internal nickel electrodes connected through vias — a serpentine path that creates both series resistance (ESR) from the thin electrode material and parasitic inductance (ESL) from the enclosed magnetic flux loops. At 1GHz, a typical 0402 100pF COG MLCC exhibits ESR values of 0.5-1.5Ω.

The HACC101S10V500 eliminates both loss sources through its single-layer coaxial architecture. Current flows vertically from the top gold bond pad, through the ceramic dielectric, to the bottom gold ground plane — a path length of just 0.15mm. There are no internal electrodes, no vias, no serpentine routing. The result: ESR below 0.1Ω at 1GHz — a 5-15* improvement over equivalent MLCCs. In a 5G n77 (3.3-4.2GHz) power amplifier output match, this difference recovers 0.3-0.8dB of through-loss per matching element.

TaN/TiW/Ni/Au Thin-Film Metallization: Four Layers, One Mission

The top and bottom electrodes of the HACC101S10V500 feature an advanced four-layer sputtered thin-film stack — TaN/TiW/Ni/Au — with a minimum gold thickness of 2.5μm. Unlike simpler two-layer metallization systems, this multi-layer approach addresses distinct physical and chemical degradation mechanisms at each interface:

This metallization system is applied symmetrically to both top and bottom electrodes, ensuring identical wire-bond and die-attach performance regardless of chip orientation — a key advantage in high-speed automated pick-and-place assembly.

Temperature and Voltage Stability: TCC & VCC Explained

Capacitance that drifts with temperature or DC bias creates a cascade of problems in precision RF circuits: VCO frequencies wander, matching networks detune, filter corner frequencies shift. The HACC101S10V500 is available with Class I COG/NPO ceramic dielectric delivering a temperature coefficient of capacitance (TCC) of just 0±30 ppm/°C across the full -55°C to +125°C operating range — meaning capacitance varies by less than ±0.3% from cold-start to full-power steady-state. For applications requiring higher capacitance density, High-K formulations (K≈140, X7R type) are also available with TCC of ±15%.

Equally important is voltage coefficient (VCC). Unlike Class II X7R/X5R dielectrics that can lose 30-80% of rated capacitance under DC bias due to ferroelectric domain clamping, the COG/NPO formulation exhibits near-zero VCC — the 100pF value remains stable from 0V to the full 50V rated voltage. For bias tee and active bias network designs, this eliminates the need for complex bias-dependent capacitance derating tables and ensures consistent impedance matching across all bias conditions.

Double-Sided Bordered Design: Preventing Epoxy Shorts at Scale

A unique feature of the HACC101S10V500 is its double-sided bordered (margin) architecture. Both top and bottom electrodes are surrounded by an un-metallized ceramic border that acts as a physical dam. During automated die attachment with conductive silver epoxy (such as Epotek H20E), excess epoxy that squeezes out from under the chip is stopped at the bottom margin — it cannot climb the sidewall and bridge to the top electrode. Simultaneously, the top margin provides a buffer zone for gold wire bonding, ensuring the bond capillary never contacts the chip edge.

For high-volume production lines, this dual-barrier design translates directly to yield improvement: zero epoxy-induced short-circuit defects, zero bond-on-edge rejects. The symmetrical bordered structure also eliminates the need for top/bottom vision inspection during pick-and-place, as both faces are functionally identical.

Application Design Notes

• Impedance Matching (100MHz-10GHz): With Q>1000 at 1MHz and ESR<0.1Ω at 1GHz, the HACC101S10V500 performs exceptionally as the capacitor element in L-section, T-section, and Pi-network matching topologies. Include approximately 0.05nH per 25μm bond wire for series inductance estimation.
• DC Blocking: Rated at 50V DC, the capacitor provides effective DC isolation in amplifier bias injection circuits. The low DF of ≤0.15% ensures minimal signal degradation in wideband AC coupling applications.
• VCO Tank Circuits: The near-zero TCC of COG/NPO dielectric maintains consistent LC tank resonance across temperature, eliminating the need for temperature compensation varactor tuning.
• 5G Infrastructure & Small Cells: Single-layer construction with minimal ESL supports clean, resonance-free performance through sub-6GHz bands. The 0.50*0.50mm die integrates directly into hybrid multi-chip modules at the MMIC carrier level.
• Fiber-Optic Transceivers (100G/400G): Ultra-low profile (0.15mm) fits within hermetic module lids; low ESR minimizes I²R losses in transimpedance amplifier bias networks.

Assembly Quick Reference

• Die Attach: Conductive silver epoxy (Epotek H20E) — cure at 120°C for 30 minutes. Alternatively, AuSn eutectic soldering for lowest thermal resistance.
• Wire Bonding: 25μm Au thermosonic ball bonding (120-150°C stage, >6gf typical pull strength). Bond landing ≥25μm from electrode edge.
• Storage: Waffle pack or gel-pak in nitrogen cabinet at 20-25°C, 40-60% RH. Shelf life 1 year under recommended conditions.

Contact us to request evaluation samples with full S-parameter characterization data for your specific operating frequency band.
