MOS Capacitors
Created with Pixso.

Laser Trimmed 220 pF MOS Capacitor Wafer-Level Matched Single Layer Chip for TOSA ROSA Optical Transceivers

Laser Trimmed 220 pF MOS Capacitor Wafer-Level Matched Single Layer Chip for TOSA ROSA Optical Transceivers

Brand Name: Hoan
Model Number: HACC221S20V500
MOQ: 10 Pieces
Payment Terms: T/T,L/C,D/A,D/P
Detail Information
Place of Origin:
Shaanxi, China
Certification:
ISO 9001:2015
Design Architecture:
Double-Sided Bordered (Margin)
Operating Temperature:
-55°C To +125°C
Storage Temperature:
20-25°C, 40-60% RH, Nitrogen Cabinet
Moisture Sensitivity:
MSL 1 (unlimited Floor Life Per J-STD-020)
Wafer-Level Test Coverage:
100% Capacitance, Leakage And Breakdown Probed On Wafer
Applications:
TOSA/ROSA, Optical Transceivers, RF Matching And DC Blocking
Highlight:

220 pF MOS Capacitor

,

Wafer-Level Matched MOS Capacitor

,

Single Layer Chip for TOSA ROSA

Product Description

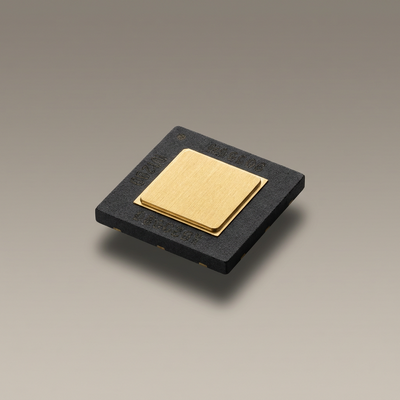

HACC221S20V500 - Laser Trimmed 220 pF MOS Capacitor, 20V, Wafer-Level Matched Single Layer Chip


In short: The HACC221S20V500 is a wire-bondable single layer MOS (metal-oxide-semiconductor) capacitor rated 220 pF ±10% at 20V DC. Each die is laser trimmed and wafer-level matched to better than ±0.1%, making it a practical choice for TOSA and ROSA optical transceiver DC blocks, bias tees and impedance matching networks.


Key Performance Advantages

1. Laser Trimmed & Wafer-Level Precision Matching

  • Every capacitor is individually laser trimmed to a target value, achieving pair matching within ±0.1% for differential driver and TIA front-ends
  • Wafer-level measurement and binning keep capacitance consistent across the whole lot, reducing the mismatch that degrades optical eye diagrams
  • Tight absolute tolerance available down to ±2% (standard ±10%) for matched pairs and filters
  • Repeatable unit-to-unit RF behaviour reduces calibration and rework in volume transceiver assembly

2. Optimized for Optical Transceivers / TOSA & ROSA

  • Ultra-low intrinsic ESL (<0.05 nH) with chip-level SRF >2 GHz supports clean DC blocking and matching at 25 Gb/s to 800 Gb/s PAM4 rates
  • High Q factor (>200 @ 1 GHz) minimizes insertion loss in bias-tee and matching networks
  • Compact 0.50 × 0.50 × 0.15 mm footprint fits dense TOSA/ROSA layouts
  • Wire-bondable top contact (TaN/TiW/Ni/Au, ≥2.5 µm Au) for gold ribbon and 25 µm Au thermosonic bonding
  • Double-Sided Bordered architecture provides epoxy containment and an optical alignment reference during die attach


Customization Options

Parameter Standard Custom Range
Capacitance 220 pF ±10% 10 pF - 1000 pF; ±2% available
Rated voltage 20V DC 6.3V - 100V DC
Dielectric type COG/NPO (Class I) X7R (Class II) or custom
Chip size 0.50 × 0.50 × 0.15 mm 0.25 × 0.25 mm to 5.0 × 5.0 mm
Top metallization TaN/TiW/Ni/Au, ≥2.5 µm Au Up to 5.0 µm Au
Design architecture Double-Sided Bordered Single-sided or borderless


Applications

  • 100G/400G/800G QSFP-DD and OSFP optical transceiver DC blocks and bypass
  • TOSA/ROSA driver and TIA inter-stage coupling
  • Coherent optics and silicon photonics RF matching
  • 5G NR FR1/FR2 power amplifier impedance matching
  • RF test and measurement front-ends
