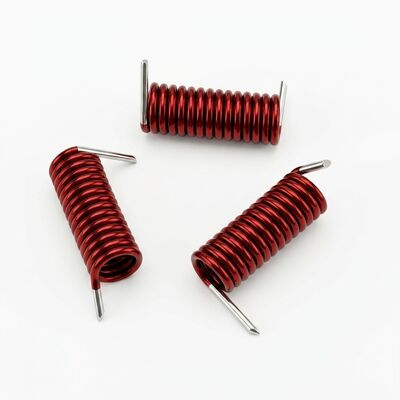

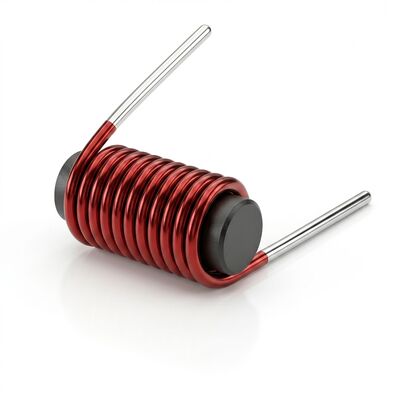

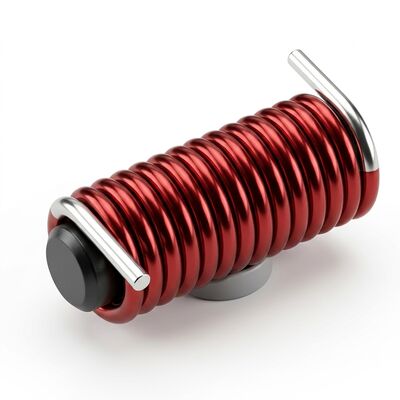

11nH Air Coil Inductor High Q Winding Air Core Inductors Low DCR

HALA0800503R 11nH Air Core Inductor High Q Factor Low DCR 100 Percent Flexible Customization 4-20GHz RF Coil

Air Core Inductor Customization: Why One-Size-Fits-All Is the Enemy of RF Performance

RF matching networks, bias tees, and filter structures are exquisitely sensitive to passive component values. An 11nH inductor used in a Chebyshev low-pass filter with 0.1dB ripple at 6GHz has a value sensitivity of approximately 0.5dB ripple increase per 5% inductance error. Stock inductors with ±20% tolerance create a 40% window of uncertainty that forces conservative design margins — margins that cost you bandwidth, insertion loss, and ultimately system performance. The HALA0800503R platform solves this by making customization the default workflow, not a special request.

The HALA080 Customization Framework

Rather than offering a fixed catalog part, the HALA080 platform provides a configurable architecture with proven manufacturing processes for every combination:

This configurability is enabled by the air-core manufacturing process. Because the inductor is a simple helical winding on a precision mandrel — not a multi-layer, multi-material ceramic component requiring custom tooling — changing the number of turns, wire gauge, or lead length requires only a process parameter adjustment, not a new fabrication mask or ceramic formulation. What would take months and thousands of dollars in NRE for a custom MLCC or ferrite chip inductor takes days on the HALA080 platform.

High Q Factor and Low DCR: The Air-Core Efficiency Advantage

Q factor in an inductor is the ratio of reactive impedance (jωL) to equivalent series resistance (ESR). In a ferrite-core inductor, ESR at RF frequencies has two components: copper loss (I²R in the winding) and core loss (magnetic hysteresis and eddy current dissipation in the ferrite material). At microwave frequencies above 1GHz, core loss dominates — ferrite Q drops precipitously as the magnetic domain relaxation time approaches the RF period.

The HALA0800503R delivers a Q factor ≥100 at 1GHz by eliminating core loss entirely. The air core has zero magnetic hysteresis and zero eddy current dissipation. The only loss mechanism is the DC resistance of the 0.05mm copper winding — a purely ohmic loss that is predictable, stable with temperature, and does not increase with frequency (skin effect becomes significant above approximately 10GHz for 0.05mm wire and is accounted for in the S2P data). At 4-20GHz, this translates to 2-5dB lower insertion loss in a bias tee network compared to an equivalent ferrite chip inductor.

Low DCR is a natural consequence of the air-core design. With no core material to fill, the entire coil volume is copper — the best practical conductor at room temperature. The 8-turn, 0.05mm wire helix has a DC resistance of approximately 0.15-0.25Ω, evenly split between the two symmetrical leads. This low DCR means lower I²R heating at 400mA (approximately 40mW dissipation), enabling consistent electrical performance without thermal inductance drift.

Precision Binning: How ±5% Tolerance Is Achieved

Inductance tolerance is not a process capability limit — it is a selection service. The HALA080 manufacturing process produces coils with a natural inductance distribution centered on the nominal value with standard deviation of approximately 3-4%. For standard ±20% tolerance, all coils within this distribution are shipped. For ±10% tolerance (approximately ±2.5σ), coils falling outside the tighter window are binned. For ±5% tolerance, the tightest window captures approximately the center 60-70% of the production distribution.

All coils are 100% tested at RF frequency with inductance, Q factor, and SRF measured and recorded. For orders specifying S2P data, each production lot is sampled (typically 5-10% AQL) with full 2-port Touchstone characterization from 100MHz to 26.5GHz. This data is provided as standard .s2p files for direct import into Keysight ADS, Ansys HFSS, and Cadence AWR Microwave Office.

Symmetrical Tinned-to-Root Leads: Reliability from Solder Joint to First Turn

The HALA0800503R features symmetrical straight leads ≥8.0mm in length, tinned continuously from the tip to the coil root. This seemingly simple feature delivers three practical manufacturing benefits:

• Orientation-free pick-and-place: Symmetrical leads mean the inductor can be inserted in either direction. Automated assembly equipment does not need to determine lead polarity — a throughput advantage in high-volume production.
• Corrosion-free transition zone: The continuous tinning from tip to root eliminates the bare copper gap found on partially-tinned leads. This gap is the most common corrosion initiation site in humid environments (condensing humidity, outdoor installations) and the root cause of intermittent failure under thermal cycling.
• Optimized RF solder joint: Tinned leads wet rapidly and form uniform fillets with SAC305 solder. The low solder volume at the PCB interface minimizes parasitic capacitance to ground, which would otherwise create an unwanted shunt reactance that degrades SRF.

Key Specifications

HALA080 vs. HALA060: Platform Selection Guide

Both HALA platforms share the same fundamental manufacturing technology — 0.05mm enameled copper wire helically wound on a 0.30mm precision mandrel — differing only in turn count and resulting inductance. This shared platform means all assembly processes, reliability characteristics, and customization options apply equally to both variants:

For new designs, start with the platform that places your target choke impedance closest to the middle of your operating frequency band. The HALA080's 11nH provides j276Ω at 4GHz — ideal for C-band bias tees. The HALA060's 7nH provides j220Ω at 5GHz — better suited where higher SRF margin is prioritized over maximum impedance. Both platforms support the same customization options and share identical assembly processes.

Practical FAQ: What Engineers Ask Before Ordering

Q: How do custom turn counts affect lead time?
A: Standard 8-turn (11nH) and 6-turn (7nH) configurations ship from stock in 3-5 working days. Custom turn counts between 4-12 turns require approximately 1-2 weeks for prototype quantities. The winding process is the same regardless of turn count — the only variable is the number of mandrel rotations — so custom values do not require new tooling or process development.

Q: What is the shelf life of tinned-to-root leads?
A: When stored at 20-25°C and 40-60% RH in ESD-safe carriers, the tinned leads maintain full solderability for 1 year minimum. The continuous tinning from tip to root eliminates the bare copper gap that is the primary corrosion initiation site on partially-tinned leads. For extended storage beyond 1 year, solderability re-verification testing (dip-and-look per J-STD-002) is recommended.

Q: Can I order matched pairs or sets for differential circuits?
A: Yes. For differential branch-line couplers, quadrature hybrids, and balanced amplifier matching networks, matched pairs with inductance difference ≤2% are available by binning from the same production lot. Specify "matched pair" on your order and the required matching tolerance.

Assembly Best Practices

• Lead Trimming: Standard leads are ≥8.0mm. Trim to minimum length after soldering — leave approximately 0.5mm beyond the pad edge for fillet formation. Each excess millimeter costs approximately 0.8-1.0nH parasitic series inductance. For designs operating above 10GHz where parasitic inductance penalties are proportionally larger, trim to within ±0.2mm of flush.
• Solder Run-Up Prevention: The tinned-to-root lead finish is a double-edged sword — it provides excellent solderability but also creates a continuous wetting path from the PCB pad to the active winding turns. During both manual and reflow soldering, precisely control solder volume to prevent the fillet from reaching the first turn. An optical inspection at 10* magnification should confirm that solder is confined to the lead below the coil body. Solder bridging even a single turn reduces the effective turn count and shifts inductance downward.
• Perpendicular Mounting: Orient the coil axis perpendicular to the signal trace. For multi-coil layouts, maintain ≥2* coil body length spacing between adjacent inductors to achieve >30dB magnetic isolation at 28GHz.
• Soldering: SAC305 reflow (217°C/60-90s above liquidus, peak 245-250°C) or manual soldering (350°C tip, <3s dwell). Avoid solder bridging to active turns — the tinned-to-root feature requires controlled fillet height.
• Mechanical Fixation: After RF tuning, secure coil body with low-dielectric RF adhesive (εᵣ < 3.0). Verify S-parameters after adhesive cure to detect any detuning before conformal coating.
• Storage: ESD-safe carriers, 20-25°C, 40-60% RH. Tinned leads maintain solderability for 1 year minimum per J-STD-002 criteria.

Proven Under Severe Environmental Conditions

The HALA0800503R has been subjected to — and passed — the following qualification tests, reflecting its suitability for outdoor-installed, vehicle-mounted, and thermally challenging applications:

• Thermal Shock (-55°C to +125°C, 1000 cycles): Zero inductance shift. The air core with μ₀ = 4π*10⁻⁷ H/m (a temperature-independent fundamental constant) eliminates the dominant failure mechanism in ferrite inductors: CTE mismatch between ferrite core and copper winding that generates micro-cracking under repeated thermal cycling. The HALA080 has no core to crack — the enameled copper helix expands and contracts freely with temperature.
• Damp Heat (85°C/85%RH, 1000 hours): The polyurethane enamel coating on the 0.05mm copper wire provides effective moisture barrier protection. Post-assembly conformal coating extends this protection to the solder joint and lead-to-coil transition region.
• Random Vibration (IEC 60068-2-64, 10-2000Hz): The low mass of the 8-turn helical coil (approximately 0.6mg) places its mechanical self-resonance frequency well above the vibration spectrum — there is no mechanical resonance within the test frequency range to amplify displacement. When mechanically secured with RF adhesive per assembly guidelines, S-parameters measured before and after vibration testing show no measurable change.
• Mechanical Shock (IEC 60068-2-27, 1500g, 0.5ms): The symmetrical lead design distributes shock force evenly between both solder joints. Post-shock electrical verification confirms inductance, Q, and SRF remain within specification.

Applications

• Custom RF Matching Networks: Specify 11nH ±5% with S2P data for precision L-match, Pi-match, or T-match networks where ±20% tolerance would unacceptably broaden the impedance bandwidth. Reference S2P data in simulation before hardware build.
• 5G mmWave Phased-Array Bias Tees: 8-turn configuration with 400mA rating and Q≥100 provides sufficient DC handling and RF isolation for 28GHz (n257) multi-element beamformer arrays. Symmetrical leads enable automated, high-volume assembly.
• GaN Power Amplifier Bias Injection: 11nH with zero saturation supports 28-50V drain bias networks at 200-400mA. The low DCR (~0.2Ω) generates minimal self-heating (<40mW), preserving both efficiency and long-term reliability.
• Satellite LNB and BUC Modules: Custom inductance values (5-18nH range) and tight tolerances (±5%) match specific Ku/Ka-band frequency plans. Temperature-independent μ₀ ensures consistent performance from -55°C cold-start to full-power operation.
• Optical Transceiver Bias Networks (100G/400G/800G): High Q and custom inductance values support EML and DML laser bias injection at 80-120mA with minimal insertion loss in the 25-56Gbaud signal bandwidth.
• High-Speed Test and Measurement: Precision-binned ±5% tolerance and per-lot S2P data support calibration-grade bias tee and DC block designs where inductor-to-inductor consistency determines measurement repeatability.

Contact us with your target inductance, tolerance, lead length, and test data requirements for a rapid feasibility assessment and quotation. Standard values ship from stock; custom configurations typically deliver in 1-3 weeks.
