Zero Magnetostriction Air Coil Inductor 14nH Air Core Coils Radiation Immune

HALA1000503R 14nH Air Core Inductor Zero Magnetostriction Silent Operation Radiation Immune Thermal Shock 10T RF Coil

Magnetostriction in Inductors: The Silent Failure Mode Nobody Measures

Magnetostriction — the physical deformation of a magnetic material in response to an applied magnetic field — is a well-known phenomenon in power transformers, where it produces the characteristic 50/60Hz hum that fills electrical substations. What is less recognized is that magnetostriction also affects miniature ferrite-core inductors in RF circuits. At microwave frequencies, the ferrite core expands and contracts at the RF carrier rate (billions of times per second), generating ultrasonic vibrations that couple mechanically into the PCB. These vibrations modulate parasitic capacitances at the microphonic resonance, creating phase noise sidebands and intermittent frequency-domain artifacts that cannot be replicated in simulation.

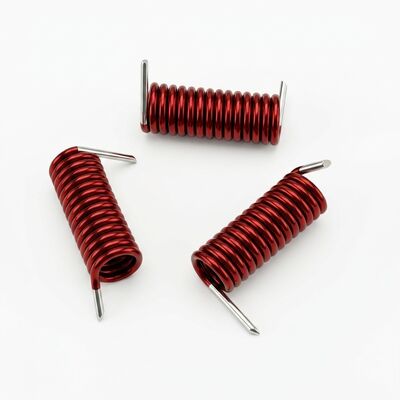

The HALA1000503R 14nH ±20% 10-turn micro air core inductor eliminates magnetostriction by eliminating the magnetostrictive material. The air core has no ferrite, no iron powder, no magnetic material of any kind — nothing that can physically deform in response to magnetic flux. The 0.05mm enameled copper wire is a non-magnetic conductor (copper is diamagnetic, χ ≈ -10⁻⁵) that experiences zero magnetostrictive force regardless of current level. The result: 100% silent operation — no audible noise, no ultrasonic vibration, and critically, no microphonically-induced phase noise or S-parameter drift.

Why Silent Operation Matters at the System Level

Consider a fan-cooled 5G remote radio unit (RRU) where four inductors serve as bias tees for four GaN PAs, each carrying 300mA at 28V. A ferrite inductor with measurable magnetostriction acts as an ultrasonic transducer — it vibrates at the RF carrier frequency, exciting PCB flexural modes. When the fan speed changes (which it does constantly with temperature), the mechanical boundary conditions change and the resonant frequencies shift. This causes time-varying parasitic capacitance modulation in the bias tee network, producing intermittent phase errors that the DPD (digital predistortion) algorithm cannot track because they change faster than the DPD adaptation loop. The symptom: occasional ACLR mask violations with no identifiable electrical root cause.

The HALA1000503R is physically incapable of this failure mode. There is no magnetostrictive material to vibrate. The inductor remains mechanically passive regardless of current, frequency, or ambient vibration. For system reliability engineers troubleshooting intermittent RF performance issues, eliminating magnetostriction from the passive component pool removes one of the most difficult-to-diagnose root causes.

Immunity to Radiation Effects: Why Air Cores Survive Where Semiconductors Fail

Total ionizing dose (TID), displacement damage (DD), and single-event effects (SEE) are the three primary radiation degradation mechanisms in electronics. Ferrite-core inductors are vulnerable to all three: ionizing radiation creates trapped charges in the ferrite lattice that alter permeability, displacement damage creates crystalline defects that increase hysteresis loss, and single-event transients in adjacent semiconductor components couple magnetically into the ferrite core.

The HALA1000503R is fundamentally immune. Its operating principle — L = μ₀ * N² * A / l — contains only free-space constants and geometry. There are no semiconductors to suffer charge trapping, no crystal lattice to accumulate displacement damage, and no magnetic domains to be disrupted by ionizing events. The air core operates at μ₀ regardless of radiation environment. For high-altitude platforms, particle physics instrumentation, and communication payloads where radiation hardness is a design requirement, the air-core inductor eliminates the need for radiation derating or shielding of passive magnetic components.

Thermal Shock Resilience: Proven Through 1000 Cycles

The dominant failure mechanism in ferrite chip inductors under thermal cycling is the coefficient of thermal expansion (CTE) mismatch between the ferrite core and the copper winding. Ferrite has a CTE of approximately 8-10 ppm/°C; copper is approximately 17 ppm/°C. Over repeated -55°C to +125°C cycles (ΔT = 180°C), the differential expansion and contraction generates cyclic shear stress at the ferrite-copper interface. Eventually, micro-cracks form, increasing the DC resistance, reducing Q, and ultimately creating an open circuit.

The HALA1000503R has no CTE mismatch to manage. The air core expands and contracts freely with temperature — there is no rigid core material bonded to the copper winding. The 0.05mm enameled copper helix is free to expand and contract along its entire length without mechanical constraint. Post-thermal-shock testing (1000 cycles, -55°C to +125°C, 15-minute dwells) confirms zero inductance shift, zero Q degradation, and zero physical deformation of the coil geometry. For outdoor-installed base station equipment, automotive under-hood electronics, and high-altitude platforms where daily thermal cycles accumulate over a 10+ year service life, this inherent thermal shock immunity translates directly to field reliability.

Tunable Inductance: Physical Pitch Adjustment for Final RF Alignment

A unique capability of the air-core helical geometry is physical tunability. Because the inductance of an air-core solenoid is proportional to the turn density (N/l, where l is the coil length), gently compressing or stretching the 10-turn coil body changes the inductance. The tuning range is approximately ±10-15% of the nominal 14nH value:

• Compress the coil (reduce length l, increase turn density): Inductance increases. The turns move closer together, increasing mutual magnetic coupling between adjacent turns.
• Stretch the coil (increase length l, reduce turn density): Inductance decreases. The turns move farther apart, reducing mutual coupling.
• Asymmetric tuning: Adjusting only one end of the coil while keeping the other fixed provides fine sub-nH adjustment for precision matching network optimization.

This physical tuning is performed during final RF alignment with the inductor soldered in place. The engineer gently manipulates the coil body with fine-tipped non-conductive tweezers while monitoring S11 or S21 on a vector network analyzer. Once the target response is achieved, the coil geometry is permanently fixed with a micro-dot of low-dielectric RF adhesive. This capability is especially valuable for single-unit and low-volume precision RF assemblies where simulation-to-hardware correlation inevitably requires some physical tuning — and where replacing a fixed-value chip inductor with a different value requires a PCB re-spin. After tuning and adhesive cure, verify S-parameters to confirm the fixation process did not shift the response.

Key Specifications

Assembly Guidelines

• Perpendicular Mounting: Mount the 10-turn coil axis strictly perpendicular (90°) to the RF signal microstrip trace. Parallel alignment creates parasitic mutual inductance and electromagnetic coupling that distorts S-parameters and degrades channel-to-channel isolation.
• Lead Length Optimization: Keep connecting leads as short as physically possible. Excess lead length introduces stray inductive paths that lower the SRF and shift the operating band of your matching network or bias tee.
• Micro-Soldering Protocol: Compatible with both SAC305 lead-free solder and Sn63/Pb37 tin-lead solder. For manual soldering: iron tip temperature ≤260°C, maximum 3-second dwell time per joint. The 0.05mm (50µm) enameled copper wire insulation melts at approximately 300°C — strict adherence to the temperature-time profile is mandatory to prevent turn-to-turn shorting from damaged insulation. For reflow: hot-air nozzle should not directly impinge on the coil body; direct the airflow at the PCB pad-lead interface only.
• Tuning and Fixation: After S-parameter verification (10MHz-20GHz spectrum), gently adjust coil pitch to fine-tune inductance while monitoring VNA response. Apply a micro-droplet of low-loss RF dielectric adhesive to permanently fix the optimized coil geometry. Verify S-parameters post-cure before conformal coating.
• Storage: ESD-safe moisture-barrier packaging at 20-25°C, 40-60% RH. Pre-tinned leads maintain solderability for 1 year from delivery.
• Flux Removal Protocol: After soldering, clean thoroughly with isopropyl alcohol (≥99% purity) and inspect under 10* magnification. Flux residue left between the 10 turns is partially conductive at RF frequencies — even a sub-micron film creates lossy inter-turn leakage paths that degrade Q factor above 10GHz. Use a fine-bristle anti-static brush for mechanical agitation between turns. Verify cleaning effectiveness by measuring DC resistance between adjacent turns — any reading below open-circuit (infinite resistance) indicates residual contamination requiring re-cleaning.
• Fixation Adhesive Specification: After final RF tuning, apply a micro-droplet of low-loss, low-dielectric RF adhesive such as Epotek H20E or equivalent (εᵣ < 3.0, tan δ < 0.005 at 10GHz). The adhesive volume should be just sufficient to encapsulate 2-3 turns at the coil center — excessive adhesive adds parasitic capacitance. Verify S11/S21 parameters after full cure; if the resonant frequency has shifted by more than 0.5%, the adhesive volume was excessive and may require adjustment in subsequent assemblies.

Air Core vs. Ferrite Core: Why the Difference Matters at Microwave Frequencies

This question arises in nearly every design review for bias tee and matching network inductors. Here is the physics-based answer:

Ferrite cores introduce two performance-limiting mechanisms at microwave frequencies: core loss (hysteresis and eddy current dissipation that increase with frequency) and magnetic saturation (permeability collapse under DC bias current). Both degrade inductor Q and shift inductance. At 10GHz, ferrite Q is typically 20-40 — the air-core HALA1000503R maintains Q several times higher because the only loss mechanism is copper I²R. At 300mA DC bias, a ferrite inductor may lose 30-50% of its zero-bias inductance — the HALA1000503R maintains exactly 14nH because μ₀ does not change with current. For bias tee designs where inductor impedance directly determines RF-to-DC isolation, this difference is not marginal — it determines whether the design meets its isolation specification with design margin or requires additional filtering stages.

The trade-off is size: ferrite inductors achieve higher inductance per unit volume through permeability multiplication (μᵣ = 10-100*). The HALA100 platform accepts this trade-off, using the increased turn count (10 turns for 14nH) to achieve the target inductance without magnetic materials. For space-constrained designs below 1GHz, ferrite may be the right choice. Above 3GHz — where the HALA100 operates — air-core advantages in Q, linearity, and saturation immunity decisively outweigh the volumetric penalty.

Applications

• High-Altitude Platform & Stratospheric Communication: Zero magnetostriction and radiation immunity eliminate two key failure mechanisms in high-altitude payloads where repair is impossible. The μ₀-based inductance is unaffected by reduced atmospheric pressure or increased cosmic radiation flux.
• Particle Physics Instrumentation: No magnetic material means no interaction with strong external magnetic fields, no Barkhausen noise from domain wall motion, and no radiation-induced permeability drift — essential for precision current sensing and signal conditioning in particle detector front-ends.
• Outdoor 5G Base Station Bias Tees: Proven thermal shock immunity (1000 cycles) and silent operation eliminate the ultrasonic vibration that creates intermittent phase errors in fan-cooled RRU equipment. Physical tunability enables final RF alignment without PCB re-spin.
• GaN-on-SiC Power Amplifier Bias Networks: 14nH provides j264Ω at 3GHz and j1.76kΩ at 20GHz. 400mA saturation-free DC handling with physical tunability for per-amplifier matching optimization.
• Satellite Communication Payloads (LEO/MEO/GEO): Radiation-immune air-core construction eliminates the need for magnetic component shielding. Wide -55°C to +125°C range covers eclipse-to-sunlight thermal transitions. 10-turn configurable geometry supports per-mission frequency plan optimization.

Contact us for evaluation samples, S2P Touchstone characterization data, or to discuss custom turn counts and inductance values on the HALA100 platform.
