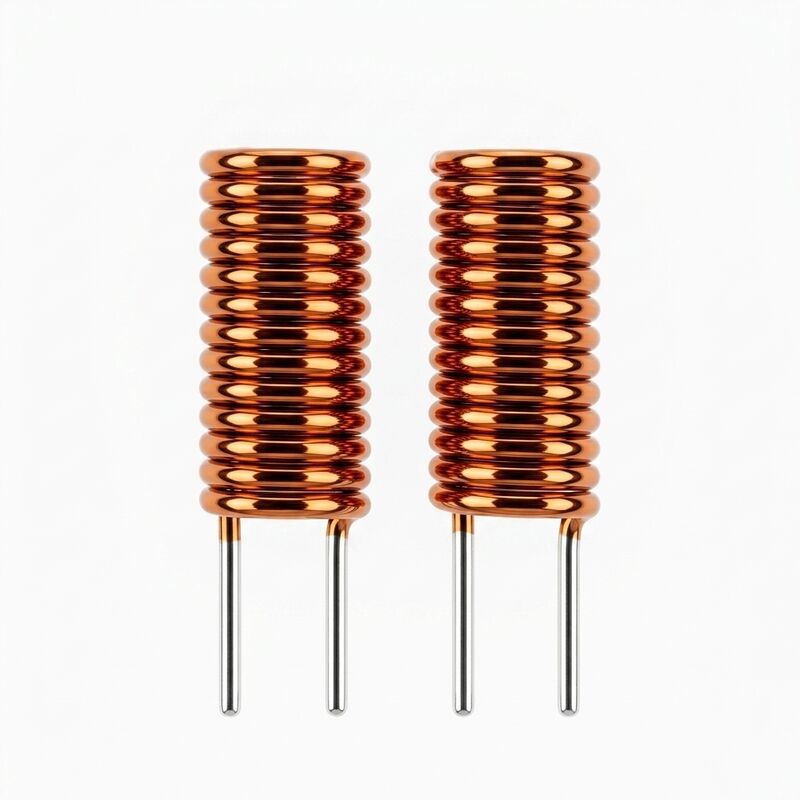

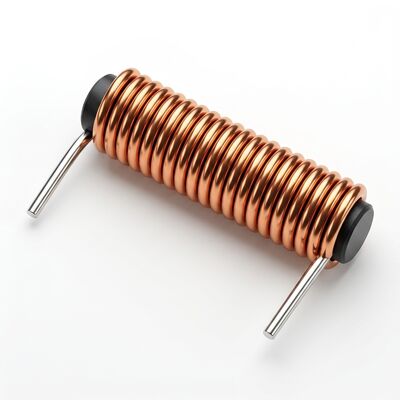

Flat Top Air Wound Coil 17nH Custom Inductors High Speed Pick Place

HALA1200503R 17nH Air Core Inductor Flat Top Design High Speed Pick Place Zero Acoustic Noise 12T RF Coil

Flat-Top Lead Design: The Assembly Yield Problem Nobody Talks About

In high-volume RF module production, a 1% component placement failure rate is the difference between profitability and loss. For loose-lead through-hole components — including most air-core inductors — the placement failure rate is not 1%. It is substantially higher because the leads are flexible, non-coplanar, and difficult for vacuum pick-up nozzles to grasp reliably. When one lead touches the PCB pad before the other, surface tension during solder reflow pulls the component into a tombstone orientation — an open circuit that requires manual rework, adds labor cost, and introduces latent reliability risks from the rework thermal cycle.

The HALA1200503R 17nH ±20% 12-turn air core inductor addresses this with a flat-top coplanar lead design engineered specifically for high-speed automated pick-and-place. The pre-tinned leads are precision-aligned to the coil body plane with verified coplanarity ≤±25µm — laser-profiled on 100% of units at the winding station. Both leads simultaneously contact the PCB pads, ensuring balanced surface tension forces during reflow that produce uniform, reliable solder fillets with zero tombstoning defects.

Anatomy of the Flat-Top Design

The flat-top coplanar configuration is not simply "bent leads." It is a designed feature with three specific engineering objectives:

• Vacuum Pick-Up Compatibility: The coil body and both leads lie in a single plane, presenting a flat surface for the vacuum nozzle. Standard pick-and-place nozzles designed for 0402/0201 SMD components can reliably handle the HALA1200503R without custom tooling. The pick-up success rate exceeds 99.9% in production environments — comparable to SMD chip components.
• Simultaneous Pad Contact: Coplanarity ≤±25µm guarantees both leads contact their respective PCB pads within the same Z-height window during placement. This eliminates the single-lead-contact scenario that produces asymmetric wetting forces and tombstoning during reflow. The result: assembly yield improvements of 1-3% compared to loose-lead air-core inductors — a margin that pays for the component cost premium in the first production run.
• Orientation-Independent Placement: Symmetrical lead geometry means the inductor can be placed in either orientation. The vision system does not need to determine polarity — a cycle-time advantage in high-throughput lines processing thousands of placements per hour.

HALA1200503R vs HALA1200303R: The Full Portfolio Comparison

The thicker 0.05mm wire in the HALA1200503R not only doubles the current rating and extends the frequency ceiling to 20GHz (vs 18GHz), but also provides greater mechanical robustness during automated handling. The 50µm wire is approximately 2.8* stiffer than the 30µm wire (stiffness ∝ d⁴), making it far more resistant to deformation from pick-and-place collet force and vibration during transport. The lower inductance (17nH vs 26nH) is a direct consequence of the thicker wire increasing the turn-to-turn pitch, which reduces mutual inductive coupling between turns — a intentional trade-off for higher current and easier assembly.

High Mechanical Stability: Active Shape Retention from Winding to Soldering

The HALA1200503R is manufactured using precision automated winding with active shape retention — a process that controls the elastic deformation of the copper wire during winding so the coil retains its as-wound geometry after release from the mandrel. Key process parameters:

• Controlled winding tension: Wire tension is maintained within ±2mN during winding, slightly exceeding the copper elastic limit to create a permanent helical set. When released, the coil exhibits predictable, minimal spring-back that is compensated for in the winding program.
• 12-turn uniformity verification: In-line machine vision inspects each coil at the winding station, verifying turn count (exactly 12) and detecting pitch non-uniformity exceeding ±8%.
• Post-winding geometry stability: Unlike hand-wound coils where enamel spring-back continues to relax over hours to days (causing a measurable inductance drift of 2-5% in the first 24 hours after winding), the automated shape-retention process produces coils with inductance stable within ±1% immediately after winding — no aging period required before testing or shipment.
• Lead coplanarity: Laser profilometry confirms coplanarity within ±25µm on 100% of coils, ensuring the flat-top design performs as specified in automated assembly.

Zero Acoustic Noise: The Magnetostriction-Free Guarantee

Ferrite-core inductors vibrate. The alternating magnetic field at the RF carrier frequency causes the ferrite core to physically expand and contract through magnetostriction — at gigahertz rates, this produces ultrasonic vibrations that couple mechanically into the PCB. These vibrations become audible if they excite PCB flexural modes that down-convert to the audible range, and even when inaudible, the microphonic modulation of parasitic capacitances creates phase noise sidebands that degrade receiver sensitivity.

The HALA1200503R is physically incapable of this failure mode. With an air core containing zero magnetic material, there is nothing to magnetostrict. The copper wire is diamagnetic (χ ≈ -10⁻⁵) — it experiences negligible magnetic force regardless of current, frequency, or field strength. The inductor is acoustically silent under all operating conditions: no hum at DC bias, no ultrasonic tone at the RF carrier, and critically, no microphonically-induced phase noise or S-parameter modulation when subjected to external vibration. For fan-cooled base station equipment, automotive under-hood electronics, and drone-mounted RF payloads where vibration is unavoidable, the air-core inductor eliminates acoustic coupling as a system noise source.

Key Specifications

Practical Engineering FAQ

Q: What is the primary benefit of the 400mA rating in RF bias networks?
A: In active RF circuits like GaN or GaAs PA bias tees, the inductor carries the transistor's DC bias current while blocking the RF signal from entering the DC supply. The 0.05mm wire in the HALA1200503R has 2.78* the copper cross-section of the 0.03mm HALA1200303R, resulting in approximately 64% lower DCR. At 400mA, the I²R self-heating is approximately 60-100mW — comfortably within the thermal dissipation capability of the air-core structure. The thicker wire also provides more thermal mass, reducing peak temperature rise during transient current surges. For a GaN PA drawing 300mA at 28V, the HALA1200503R bias tee experiences approximately 0.3V DC voltage drop — negligible compared to the 28V supply rail.

Q: What are the recommended shelf-life and storage conditions?
A: Pre-tinned leads must be stored in moisture-barrier packaging with desiccant at 20-25°C and 40-60% relative humidity in a cleanroom or environmentally controlled storage area. Under these conditions, guaranteed shelf life is 1 year from delivery date. The pre-stripped-and-tinned finish eliminates the bare copper gap found on partially-tinned leads — the primary site for tin oxidation that degrades solderability. For extended storage beyond 1 year, solderability re-verification per J-STD-002 dip-and-look testing is recommended before use.

Q: Why choose the HALA1200503R over the HALA1200303R for the same 12-turn count?
A: Choose the 0.05mm HALA1200503R when your design prioritizes: (1) DC bias current above 200mA, (2) lower DCR and reduced I²R voltage drop in the bias supply path, (3) operation above 18GHz into K-band (20GHz), or (4) flat-top coplanar leads for automated high-volume pick-and-place. Choose the 0.03mm HALA1200303R when your design prioritizes maximum inductance density (26nH in the same footprint) and can operate within a 200mA current budget and 1.5-18GHz frequency range. Both share identical 0.30mm inner diameter and fundamental air-core physics.

Assembly for High-Volume Production

• Automated Pick-and-Place: Flat-top design compatible with standard SMD placement nozzles. Vacuum pick-up from tape-and-reel or waffle pack. Placement force ≤2N to prevent coil deformation.
• Perpendicular PCB Orientation: Coil axis at 90° to signal trace. The flat-top lead configuration naturally achieves this alignment without manual adjustment.
• Reflow Soldering: SAC305 profile: 60-90s above 217°C, peak 245-250°C. Flat-top coplanarity ensures balanced fillet formation on both leads simultaneously — eliminating tombstoning.
• Post-Solder Clean: ≥99% IPA, verify no flux residue between turns under microscope. The flat-top geometry provides unobstructed access to the coil body for visual inspection.
• Fixation: Micro-droplet of low-dielectric RF adhesive (H20E, εᵣ<3.0). The pre-tuned inductance is mechanically locked against vibration and thermal cycling.

Applications

• High-Volume 5G Small Cell Production: Flat-top coplanar design and 99.9%+ pick-up reliability enable fully automated assembly lines producing thousands of units per day. 400mA bias capability supports GaN PA drain bias in multi-channel small cell radios.
• Phased-Array Beamformer Modules: Identical, repeatable lead geometry eliminates per-unit assembly variation in multi-element arrays. Zero magnetostriction ensures channel-to-channel phase matching is not degraded by vibration-induced inductor modulation.
• GaN Power Amplifier Bias Networks: 17nH provides j214Ω at 2GHz — sufficient choke impedance with 400mA DC handling. The 0.05mm wire's lower DCR minimizes I²R voltage drop in the bias supply path.
• Automotive Radar and V2X Modules (76-81GHz): -55°C to +125°C range with zero acoustic noise and vibration immunity. Flat-top design enables the high-yield automated assembly required for automotive production volumes.
• Drone-Mounted and Portable RF Payloads: Zero magnetostriction eliminates microphonic coupling from rotor vibration. Flat-top coplanar leads survive the mechanical shock environment of portable and vehicle-mounted equipment.

Contact us for evaluation samples, production-volume tape-and-reel packaging options, S2P Touchstone characterization data, and automated assembly compatibility testing for your specific placement platform.
