| Brand Name: | Hoan |
| Model Number: | HALA-CUSTOM-FP |
| MOQ: | 10 Pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

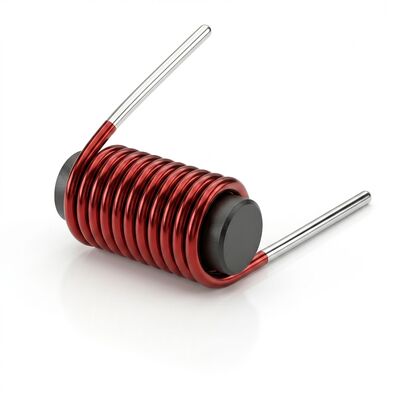

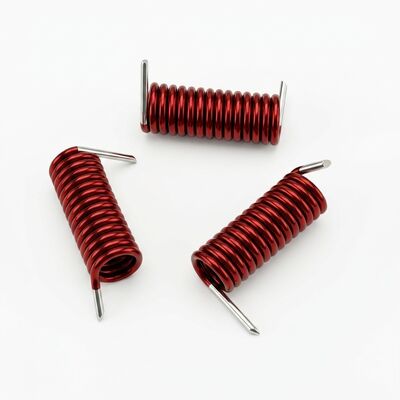

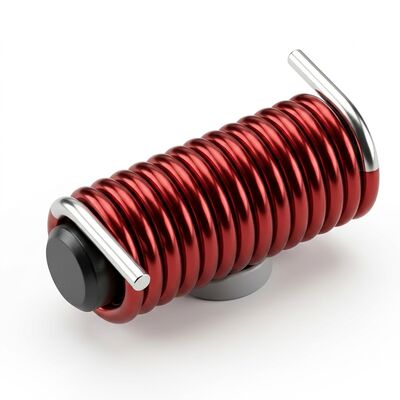

The HALA-CUSTOM-FP is engineered for multi-generation telecom roadmaps. Air-core μ₀=1.0 physics is valid to optical frequencies — no Snoek's limit, no gyromagnetic resonance, no frequency-dependent permeability collapse that limits ferrite inductors above 2GHz. The platform covers 5G FR2 (24–47GHz) production-qualified, Wi-Fi 7 (5.9–7.1GHz, 320MHz BW) with flat L(f) for wideband channel matching, Wi-Fi 8/60GHz WiGig geometrically ready, and 6G sub-THz (110–300GHz) platform-ready with sub-100µm ID mandrels and single-turn geometries.
The transition from prototype to production is where most custom component programs fail. The HALA-CUSTOM-FP eliminates this discontinuity by keeping the manufacturing platform identical at every scale: same tungsten carbide mandrel, same closed-loop servo wire tension, same 100% in-line optical inspection, same per-coil RF test station. The coil measured from a 10-piece prototype lot is statistically indistinguishable — within VNA measurement uncertainty — from the coil measured from a 10,000-piece production lot six months later. Volume capacity scales to 100,000+ pieces per month via multi-machine parallel production.
Every coil receives 100% RF testing (L, Q, SRF, R_DC) with per-coil 2D data matrix identification — identical test architecture from the first prototype to the millionth production coil. Production scaling amplifies quality problems; 100% testing eliminates them at source.
| Parameter | Value |
|---|---|
| Frequency Coverage | 100 MHz – 20 GHz production, extendable to 300 GHz platform-ready |
| 5G FR2 Readiness | 24–47 GHz, production qualified |
| Wi-Fi 7 Readiness | 5.9–7.1 GHz, 320MHz BW, flat L(f) |
| 6G Sub-THz Readiness | 110–300 GHz, platform-ready |
| Prototype-to-Production Identity | Same mandrel, wire, tension, test — identical S-parameters |
| Volume Capacity | Up to 100,000+ pieces/month |
| RF Test Coverage | 100% per-coil: L, Q, SRF, R_DC — all volumes |
| Coil Inner Diameter | 0.3 mm – 5.0 mm, sub-0.3mm for sub-THz |
| Turn Count | 1–50 turns (single-turn for sub-THz) |
| Wire Diameter | 0.03, 0.05, 0.08, 0.10 mm enameled copper |
| Wire Material | OFHC Copper (99.9%), silver-plated or gold-bonded |
| Inductance Range | 2 nH – 500 nH (sub-nH for sub-THz) |
| Q Factor | ≥100 @ 1 GHz |
| SRF | >20 GHz (>50 GHz custom geometries) |
| Max Current | Up to 500 mA DC, zero magnetic saturation |
| Operating Temperature | -55°C to +125°C |
| Lead Configuration | Straight axial, SMD flat-top, custom |
| Lead Plating | Electroless tin, silver, gold flash, solder-dipped |
| Test Data | S2P Touchstone per lot (100MHz–26.5GHz, 201 points) |
| Compliance | RoHS, REACH, Halogen-Free, CM-Free |
| Platform | HALA precision automated winding |
| Prototype Lead Time | 5–7 business days, MOQ 10 pieces |
Contact us with your current frequency band, future roadmap requirements, and production volume forecast. Prototype quantities with full scaling assessment ship in 5–7 business days.
