| Brand Name: | Hoan |
| Model Number: | HALA-CUSTOM-EM |
| MOQ: | 10 Pieces |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |

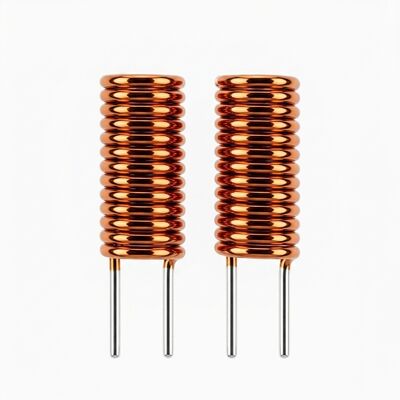

The HALA-CUSTOM-EM is manufactured with full lifecycle carbon-footprint optimization: energy-efficient precision winding process, zero-cyanide electroless plating, RoHS/REACH/Halogen-Free/CM-Free/PFAS-Free material supply chain, and recyclable anti-static tray or paper-based moisture-barrier packaging. Every production lot includes a material declaration sheet confirming SVHC-free status per REACH Article 33 and full compliance with RoHS 2011/65/EU including Annex III exemptions. The air core architecture itself contributes to sustainability — no ferrite mining, no rare-earth extraction, and no nickel-zinc processing. OFHC copper winding (99.9% pure) is the sole functional material, and the winding process generates near-zero scrap (<0.3% material loss).
Air core inductors have a fundamental advantage in medical environments: μ₀=1.0 means zero ferromagnetic contamination, zero magnetostriction, and zero MRI-induced artifacts. The HALA-CUSTOM-EM extends this with ISO 13485 certified manufacturing, PPAP Level 3 documentation support, biocompatibility assessment (no ferromagnetic materials, MRI-conditional compatible, no tissue heating artifacts from hysteretic or eddy-current losses), and full per-lot traceability with per-coil 2D data matrix identification. Solderability is verified per JESD22-B102 steam-aged 8 hours, and thermal shock endurance is confirmed per IEC 60068-2-14 Na (-55 to +125°C, 500 cycles) with inductance drift <1% and Q degradation <5%. These qualification protocols align with medical device regulatory submission requirements for passive component reliability data.
Design received by 12:00 CST ships prototype coils the same business day. The express service includes: full CAD design review, in-house mandrel fabrication, winding parameter programming, first-article S2P Touchstone characterization (100MHz–26.5GHz, 201 points), optical inspection record, and Certificate of Conformance — all delivered with the prototype shipment. No premium surcharge for express service; standard MOQ of 10 pieces applies.
| Parameter | Value |
|---|---|
| Coil Inner Diameter | 0.3 mm – 5.0 mm, precision mandrel-ground |
| Turn Count | 2–50 turns, 100% encoder-verified |
| Wire Diameter | 0.03, 0.05, 0.08, 0.10 mm enameled copper |
| Wire Material | OFHC Copper (99.9%), silver-plated or gold-bonded |
| Inductance Range | 2 nH – 500 nH |
| Q Factor | ≥100 @ 1 GHz (air-core, zero hysteresis) |
| SRF | >20 GHz |
| Magnetic Saturation | None — μ₀=1.0, absolute linearity |
| Magnetostriction | Zero — no magnetic material |
| MRI Compatibility | Non-ferromagnetic, μ₀=1.0, no tissue heating artifacts |
| Operating Temperature | -55°C to +125°C |
| Thermal Shock | IEC 60068-2-14 Na, 500 cycles, L drift <1% |
| Solderability | JESD22-B102 steam-aged 8H, dip-and-look, wetting balance |
| Compliance | RoHS, REACH, Halogen-Free, CM-Free, PFAS-Free, ISO 13485 |
| PPAP | Level 3 available, FAI with CPK analysis, MSA, material certs |
| Packaging | Recyclable anti-static tray, ESD-safe eco-packaging |
| Express Prototyping | Design by 12:00 CST → ships same day, 24H door-to-door |
Contact us with your medical device or eco-friendly RF inductor requirements. 24-hour express prototyping with ISO 13485 documentation ships same business day.
