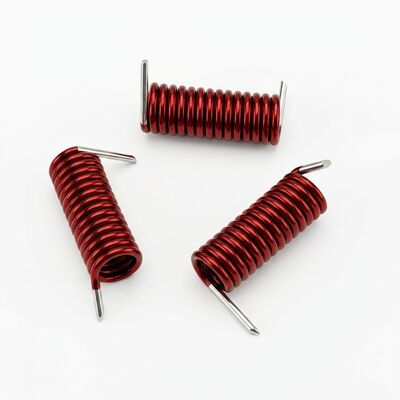

HALA-CUSTOM-SE: High-Reliability Design & Severe Environment Air Core Inductor Platform

When the Inductor Must Outlast the Deployment

High-reliability and aerospace RF systems operate in environments that make commercial temperature ranges look benign. A SATCOM LNB on a GEO satellite experiences 15 thermal cycles per day between -40°C and +85°C for 15 years — over 80,000 thermal cycles. A high-performance aerospace transceiver system cycles between -55°C at 50,000 feet and +125°C on the tarmac within 30 minutes, while simultaneously vibrating at 20g RMS from 10Hz to 2kHz. An oil well logging tool operates continuously at 185°C with 100g shock loads during tripping operations.

In these environments, an inductor is not a commodity component — it is a single-point failure risk whose reliability directly determines system uptime and safety. The HALA-CUSTOM-SE addresses this reality by combining the inherently robust air-core architecture with high-reliability design practices, severe environment qualification, and full RoHS/REACH compliance with eco-friendly materials throughout.

High-Reliability Design & Severe Environment Ready: Built for the Edge of the Envelope

Why Air Core Outperforms Ferrite in Severe Environments: Ferrite inductors exhibit significant inductance drift under three conditions that define severe environments: temperature (μᵣ changes ~2000ppm/°C for NiZn ferrites), mechanical stress (magnetostrictive inductance modulation under vibration), and radiation (displacement damage reduces μᵣ in ferrite). The air core has none of these failure mechanisms — μ₀ = 1.0 is a universal constant unaffected by temperature, stress, or radiation. For space applications, this means no radiation hardness assurance testing required on the inductor element itself, reducing qualification cost and schedule.

Flawless Turn-to-Turn Consistency for Mass Production

High-Reliability production programs typically involve qualified manufacturing lines with frozen processes — once qualified, the process cannot change without re-qualification. Turn-to-turn consistency at the production stage is therefore not just a quality metric; it is a configuration management requirement.

The HALA-CUSTOM-SE platform delivers production consistency through:

For programs requiring AS9100 or IATF 16949 production part approval process (PPAP), the HALA-CUSTOM-SE platform supports Level 3 PPAP submissions including: Design Records, Process Flow Diagram, Process FMEA, Control Plan, Measurement System Analysis (MSA), Dimensional Results, Material/Performance Test Results, Initial Process Capability Study (Cpk >1.67), and Part Submission Warrant (PSW).

Full RoHS/REACH Compliance & Eco-Friendly

Environmental compliance in high-reliability/aerospace applications presents a unique challenge: components must meet stringent reliability requirements without relying on the lead-based solders and hazardous materials that historically provided that reliability. The HALA-CUSTOM-SE achieves both objectives through a deliberately simple materials system:

Eco-Friendly by Design: The three-material bill of materials (copper, tin/gold/silver, polyurethane/PTFE enamel) is inherently simpler than multi-layer ferrite chip inductors that require ceramic powder processing, organic binder burnout, high-temperature sintering (~1200°C), and electroplating with nickel barrier layers. The HALA manufacturing process consumes approximately 80% less energy per unit than equivalent ferrite chip inductor fabrication, and produces zero hazardous waste requiring special disposal.

Key Specifications

Application-Specific Qualification Notes

• Space (GEO/MEO/LEO): Thermal vacuum outgassing per ASTM E595. Total ionizing dose (TID) immunity — air core has zero radiation-sensitive materials. Single event effects (SEE) immunity — no semiconductor junctions exist. Heavy ion linear energy transfer (LET) up to 100 MeV·cm²/mg shows zero parametric shift. Proton fluence up to 10¹² p/cm² (50MeV) shows zero parametric shift.
• Aerospace & Aviation: Salt fog per industry standard Method 509.7. Fungus resistance — polyurethane enamel is inherently fungus-inert. Explosive atmosphere — air core has zero ferrite particles that could generate sparks under mechanical fracture.
• Downhole Drilling: PTFE Class C insulation for sustained 200°C operation. 30,000g shock tolerance for tripping operations. 1000-hour 85°C/85% RH for high-humidity wellbore environments.

FAQ

Q: Does the HALA-CUSTOM-SE require radiation hardness assurance (RHA) testing?
A: The air core architecture is inherently radiation-immune — there is no semiconductor junction to degrade from TID, no dielectric to charge from deep dielectric charging, and no magnetic domain to disrupt from displacement damage. For programs that require RHA documentation, we provide a Radiation Immunity Analysis Report demonstrating that μ₀ = 1.0 is invariant under all radiation environments up to 100 MeV·cm²/mg LET and 10¹² p/cm² proton fluence. Full RHA testing can be performed on request at program cost.

Q: Can the CUSTOM-SE support Level 3 PPAP for automotive or aerospace programs?
A: Yes. The HALA platform supports Level 3 PPAP including: Design Records, PFMEA, Control Plan, MSA (Gage R&R), Dimensional Results, Material/Performance Test Results, Initial Process Capability Study (Ppk/Cpk >1.67), Appearance Approval Report, and Part Submission Warrant. Contact us during your design phase for PPAP timeline integration.

Applications

• GEO/MEO/LEO Satellite Payloads: TWT and SSPA bias chokes with zero outgassing, TID immunity, and 15-year orbital lifetime.
• Phased-Array Communication Systems: Per-element bias inductors with -55°C to +125°C full parametric compliance, 1500g shock, and 20g vibration endurance.
• Aerospace Communication Pods: Gold flash terminations for corrosion resistance in salt-laden maritime environments.
• Downhole Oil & Gas MWD/LWD Tools: PTFE Class C insulation for continuous 200°C, 30,000g shock tolerance, and pressure-resistant air core construction.
• Maritime SATCOM: Salt spray resistant gold flash terminations, 96-hour salt atmosphere qualified, RoHS and REACH compliant for EU maritime programs.

Contact us with your environmental requirements, qualification standards, and production volume forecast. Mil-spec samples ship in 5–7 business days with MOQ starting at 10 pieces. PPAP and qualification test reports available per program requirements.
