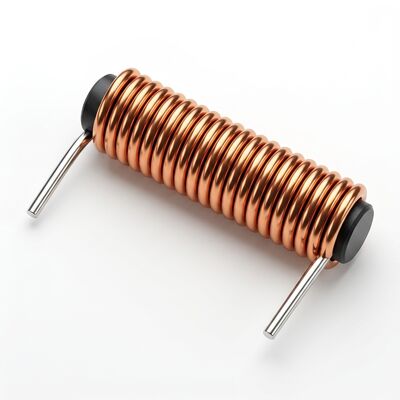

Tailored Geometry Air Core Inductor Precision Inductance Wire Wound Inductor Tight Tolerances Rapid Prototyping

Tailored Geometry Air Core Inductor Precision Inductance Wire Wound Inductor Tight Tolerances Rapid Prototyping

Brand Name: Hoan
Model Number: HALA-CUSTOM-GT
MOQ: 10 Pieces
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Place of Origin:
Shannxi,China
Certification:
ISO 9001:2015, RoHS, REACH
Original:
Dongguan
Custom:
OEM Accepable
Currentrating:
Up To 5A
Insulation Class:
Class B, Class F, Class H
Tolerance:
±5%
Working Frequency:
20KHZ --500KHZ
Highlight:

Tailored Air Core Inductor

,

Precision Inductance Wire Wound Inductor

,

Tight Tolerances Air Core Inductor

Product Description

Custom Air Core Inductor Tailored Geometry Footprint Precision Inductance Tight Tolerances Rapid Prototyping


HALA-CUSTOM-GT: Tailored Geometry & Precision Inductance Air Core Inductor Platform

When PCB Real Estate and Electrical Tolerance Are Non-Negotiable

RF module designers face two relentless constraints: the physical footprint available on the board, and the electrical tolerance window that the circuit can accept. A 0.1dB ripple Chebyshev filter at 6GHz has an inductance sensitivity of approximately 0.5dB ripple increase per 5% value error — forcing conservative design margins that cost bandwidth and insertion loss. Meanwhile, a 64-element phased-array beamformer demands inductor footprints measured in fractions of a millimeter, with channel-to-channel isolation exceeding 30dB at 28GHz.

The HALA-CUSTOM-GT addresses both constraints simultaneously. Built on the proven HALA precision automated winding platform, it offers fully tailored coil geometry — inner diameter from 0.3mm to 5.0mm, coil length configurable by turn count and wire gauge — combined with precision inductance binning down to ±5% tolerance. This platform is the same manufacturing technology that produces the field-proven HALA060, HALA080, HALA100, HALA120, and HALA200 series.

Tailored Geometry & Footprint: Every Millimeter Under Your Control

Geometric Parameter Standard Range Custom Availability
Coil Inner Diameter 0.3 mm – 5.0 mm Any diameter, precision mandrel-ground ±0.02mm
Coil Length ~0.3 mm – 3.0 mm Configurable by turns * wire diameter
Number of Turns 4 – 50 turns Any integer, 100% optical verification
Total Coil Volume ~0.02 mm³ – 60 mm³ From smaller than 0201 to custom form factors
Coil Mass ~0.3 mg – 80 mg Negligible payload for weight-constrained platforms
Footprint Comparison Smaller than 0201 SMD 0.30mm ID * 0.50mm length = 0.035mm³ (HALA100 reference)

This geometry flexibility enables unprecedented PCB layout density. In a 64-element beamformer where each element requires a bias tee inductor, the space savings compared to 0201 SMD ferrite inductors can be reallocated to additional routing layers or active circuitry. At 28GHz where λ/2 ≈ 5.3mm, the inductor body is less than λ/10 in any dimension — effectively a lumped element with negligible distributed effects.

Precision Inductance & Tight Tolerances: ±5% for Mission-Critical Matching

Inductance tolerance is not a process capability limit — it is a selection service. The HALA automated winding process produces coils with a natural inductance distribution centered on nominal with standard deviation of approximately 3–4%. Three tolerance grades serve different application requirements:

Tolerance Grade Window Coverage Lead Time Best For
Standard (±20%) Full production distribution 100% of coils Stock, 3–5 days General bias tees, non-critical matching
Precision (±10%) ±2.5σ window ~95% of production +1 week (binning) Filter networks, impedance matching
High-Precision (±5%) ±1.7σ window ~70% of production +1–2 weeks (binning) Differential pairs, quadrature hybrids, calibration-grade

All coils are 100% tested at RF frequency with inductance, Q factor, and SRF measured and recorded. For orders specifying S2P data, each production lot is sampled with full 2-port Touchstone characterization from 100MHz to 26.5GHz (201 points). This data is provided as standard .s2p files for direct import into Keysight ADS, Ansys HFSS, and Cadence AWR Microwave Office.

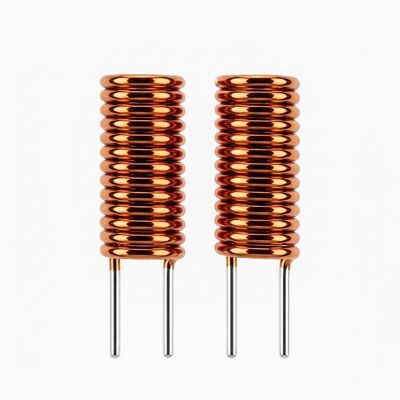

For differential branch-line couplers and quadrature hybrid networks, matched pairs with inductance difference ≤2% are available by binning from the same production lot. Specify "matched pair" on your order with the required matching tolerance.

Rapid Prototyping & Cross-Reference: Your Design, Our Platform, Fast

The HALA-CUSTOM-GT is supported by a rapid prototyping service that delivers evaluation quantities within 5–7 business days. But the value extends beyond speed: the CUSTOM-GT platform provides cross-reference compatibility with the entire HALA product family, enabling seamless migration between catalog and custom parts.

Cross-Reference Mapping: If your design starts with a standard HALA060 (6T, 7nH, 400mA) and later requires a custom inductance value or a tighter tolerance, the CUSTOM-GT platform provides the migration path without changing assembly processes, footprint philosophy, or qualification status. The same 0.30mm ID mandrel, the same 0.05mm enameled copper wire, the same perpendicular mounting orientation, and the same S2P data format serve both catalog and custom parts.

Catalog Part Turns L (nH) CUSTOM-GT Cross-Reference
HALA0600503R 6 7 CUSTOM-GT: 6T, ±5% tolerance, custom lead length
HALA0800503R 8 11 CUSTOM-GT: 8T, ±10% tolerance, custom coil length
HALA1000503R 10 14 CUSTOM-GT: 10T, ±5% matched pair
HALA1200503R 12 17 CUSTOM-GT: 12T, custom ID >0.30mm
HALA2000303R 20 48 CUSTOM-GT: 20T, custom wire gauge for higher current

Key Specifications

Parameter Value Conditions
Inductance Range 2 nH – 500 nH Per customer specification
Tolerance Grades ±20% / ±10% / ±5% Statistical binning at RF frequency
Matched Pairs ΔL ≤2% Same production lot binning
Coil ID Range 0.3 mm – 5.0 mm Precision mandrel ±0.02mm
Turn Count 4 – 50 turns Any integer, 100% optical verification
Wire Diameter 0.03 – 0.50 mm Enameled OFHC copper (99.9%)
DC Current Rating Up to 500 mA Wire gauge dependent, zero saturation
Frequency Range 100 MHz – 20 GHz Application-specific by geometry
Q Factor ≥100 @ 1 GHz Air-core, zero hysteresis loss
SRF >20 GHz Single-layer air-spaced helix, εᵣ=1.0
Operating Temp -55°C to +125°C Full parametric, μ₀ constant
Test Data S2P per lot 100MHz–26.5GHz, 201 points
Proto Lead Time 5–7 business days MOQ 10 pieces

Assembly Guidelines

  • Perpendicular Mounting: Coil axis at 90° to RF microstrip trace. Verify under ≥10* stereo microscope. A 15° deviation increases near-field coupling by 2–3dB at 10GHz.
  • Minimum Lead Length: Trim flush with PCB pad edge. Each excess millimeter adds ~0.8–1.0nH parasitic series inductance.
  • Micro-Soldering: SAC305 or Sn63/Pb37. Tip ≤260°C, ≤3s dwell. The enameled wire insulation degrades above ~300°C.
  • Post-Solder Fixation: After RF tuning, apply micro-droplet of low-dielectric adhesive (εᵣ < 3.0). Verify S-parameters post-cure.
  • Storage: 20–25°C, 40–60% RH in ESD-safe moisture-barrier packaging. Shelf life 1 year. MSL 1 — unlimited floor life.

FAQ

Q: How do I specify a custom geometry for my application?
A: Provide your target inductance, frequency band, DC current, and available PCB footprint dimensions. Our application engineers will recommend the optimal ID, turn count, and wire gauge combination. Reference designs from the existing HALA catalog series serve as starting points.

Q: Can I get ±5% tolerance on any inductance value?
A: ±5% tolerance is available for any inductance value within the 2nH–500nH range. For values where the standard production distribution is wider than ±5%, additional binning runs extend lead time by approximately 1 week.

Q: How do matched pairs work?
A: Matched pairs are two inductors selected from the same production lot with inductance difference ≤2%. They are packaged and labeled as a pair. Ideal for differential circuits, quadrature hybrids, and balanced amplifier matching networks.

Applications

  • 5G mmWave Phased Arrays: Custom footprint per element, ±5% tolerance for per-channel impedance matching consistency across 64–256 element arrays.
  • Precision Filter Networks: Tight tolerance inductors for Chebyshev, Butterworth, and elliptic filter topologies where inductance sensitivity directly determines passband ripple.
  • Differential LNA Matching: Matched pairs (ΔL ≤2%) for balanced amplifier input matching, preserving CMRR across the full operating band.
  • SATCOM Multi-Band LNBs: Per-band optimized geometry with cross-reference to standard HALA catalog for seamless supply chain flexibility.
  • Calibration-Grade Test Equipment: ±5% binned inductors with per-lot S2P data for VNA calibration standards and precision bias tees.

Contact us with your target inductance, tolerance grade, footprint constraints, and frequency band for a rapid feasibility assessment. Standard HALA catalog values ship from stock; custom geometries deliver in 1–2 weeks.
