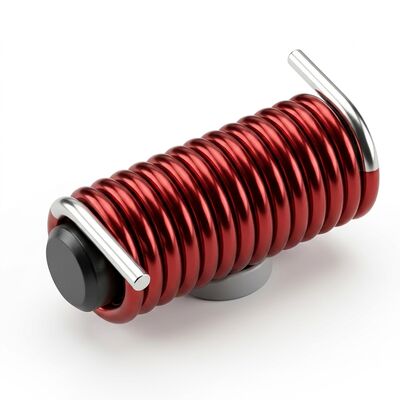

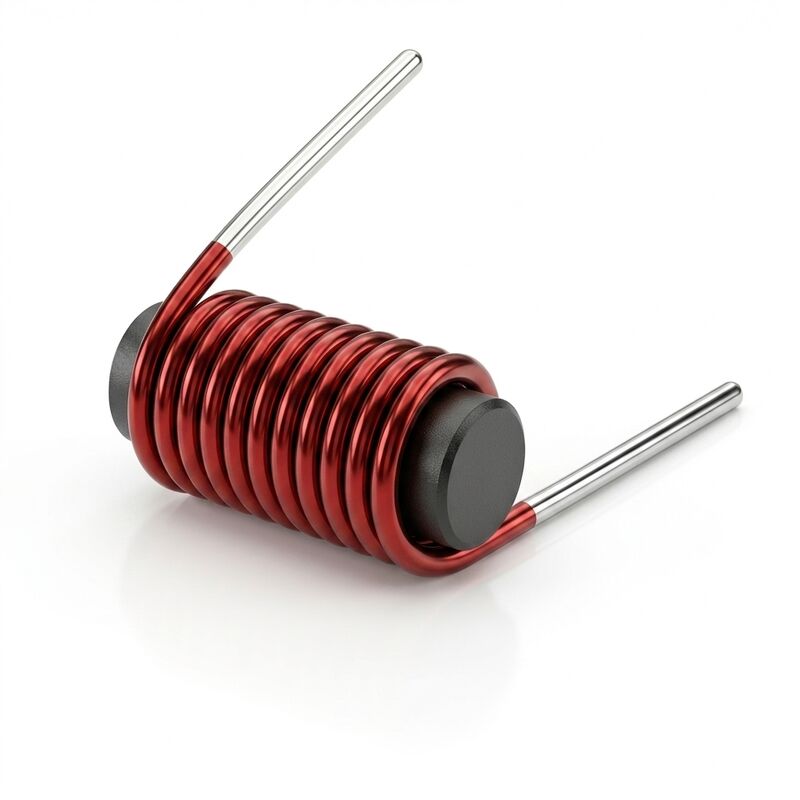

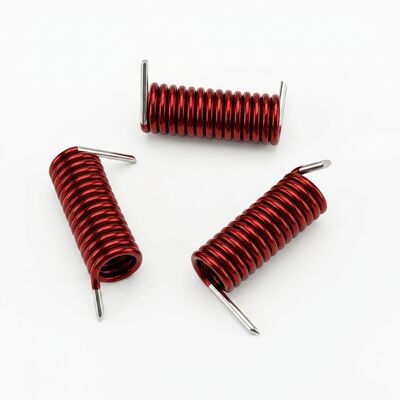

High Precision Air Wound Coils Geometry RF Choke Inductor 7nH

HALA0600503R 7nH Air Core Inductor Excellent Current Handling High Precision Flexible Geometry Compact RF Spring Coil

Air Core Inductor Current Handling: Why 400mA Without Saturation Changes RF Bias Network Design

A bias tee is the most deceptively simple circuit in RF design — just an inductor and a capacitor. Get the inductor wrong, and your entire transmitter chain suffers: gain compression, efficiency collapse, and ACLR mask violations. The culprit is almost always current-induced inductance degradation. When a ferrite inductor saturates, its inductance drops, its impedance at RF falls, and the bias tee stops being a bias tee — it becomes a resistive attenuator at your operating frequency.

The HALA0600503R 7nH ±20% air core inductor solves this problem by removing the saturable material entirely. Rated at 400mA DC continuous with zero inductance degradation across the full current range, this 6-turn helical coil wound from 0.05mm enameled copper wire delivers consistent 7nH regardless of whether the DC bias is 10mA or 400mA. For an RF engineer designing a GaN PA bias network at 28V/300mA, the choice between an air core inductor that maintains its inductance and a ferrite chip inductor that loses 50% of it is not subtle — it determines whether the design meets its efficiency and linearity targets.

Current Handling: The Physics of DC Bias Stability

The relationship between current and inductance in an air core inductor is governed by free-space physics. Without a ferrite or powdered-iron magnetic path, the magnetic flux density B is proportional to current I with a constant of proportionality that is exactly the free-space permeability μ₀:

B = μ₀ * N * I / l

Where N is turns (6), I is current, and l is the effective magnetic path length. Since μ₀ = 4π * 10⁻⁷ H/m is a fundamental constant that does not change with temperature, current, or frequency, the inductance remains perfectly linear. There is no saturation knee, no hysteresis loop, and no need for bias-dependent S-parameter files — one Touchstone file characterizes the component at all operating points.

This physics translates directly to practical design advantages: in a 5G 3.5GHz Doherty power amplifier where the main and peaking amplifiers see different DC bias currents depending on the instantaneous envelope power level, ferrite bias chokes modulate their inductance across the envelope cycle — generating undesirable AM-PM distortion. The HALA0600503R, with current-independent inductance, introduces zero current-dependent phase shift, preserving the Doherty combiner's load modulation linearity.

High Precision: Beyond the Datasheet Numbers

The HALA0600503R is manufactured on precision mandrels with tight mechanical tolerance control that directly translates to tight electrical tolerance:

The inductance tolerance of ±20% reflects the statistical combination of these individual mechanical tolerances. For designs requiring tighter matching — such as differential branch-line couplers or quadrature hybrid networks — per-lot S2P Touchstone data enables simulation with measured rather than nominal values, and tightly-matched pairs are available upon request.

Highly Flexible Geometry: One Platform, Multiple Configurations

The HALA0600503R is more than a single part number — it represents a configurable platform in a compact air-core form factor:

• Coil Length Options: Available in 0.3mm and 0.4mm configurations. The shorter coil minimizes PCB footprint; the longer coil slightly increases inductance per unit DC resistance. Both options share identical ID (0.30mm) and wire diameter (0.05mm), ensuring consistent assembly characteristics.
• Inductance Range: The 0.30mm ID / 0.05mm wire platform supports inductances from approximately 4nH (4 turns) to 10nH (8 turns). For applications requiring values outside this range, custom designs are evaluated within 1-2 weeks with prototype samples in 3-4 weeks.
• Lead Configuration: Standard straight tinned leads for perpendicular PCB mounting. Custom lead bend angles and cut lengths available for specialized mounting orientations — consult factory with your mechanical drawing.
• Test Data Package: Standard Certificate of Conformance with every lot. Optional per-lot S2P Touchstone data (100MHz-26.5GHz, 201 points) enables accurate simulation with measured, rather than nominal, inductor parameters.

Assembly Integration Guide

• Symmetrical Tinned Leads: The HALA0600503R utilizes symmetrical, straight tinned copper leads that eliminate orientation concerns during assembly. Insertion direction does not affect electrical performance — a practical advantage for high-speed automated pick-and-place lines. Tinned finish is fully compatible with lead-free SAC305 reflow soldering (peak 245-250°C) and produces mechanically robust solder fillets with excellent thermal cycling endurance.
• PCB Footprint: Design pad spacing to match lead spacing with minimum excess lead length. Center-to-center pad distance of approximately 1.0-1.2mm accommodates the 0.30mm ID coil body with sufficient room for solder fillets on both sides. For the 0.30mm coil length variant, pad spacing can be reduced to approximately 0.8mm for maximum layout density — verify pad clearance to adjacent traces per your PCB design rules.
• Perpendicular Mounting: Mount the coil body perpendicular to the RF trace direction. Even a 10-15° angular deviation measurably increases near-field magnetic coupling to adjacent channels. For phased-array beamformers where channel isolation target exceeds 30dB at 28GHz, verify perpendicularity during optical inspection.
• Soldering Profile: Manual soldering: 350°C tip temperature, <3 sec dwell time per joint. Reflow: SAC305 profile with 60-90 sec above 217°C, peak 245-250°C. The short thermal mass of the 0.05mm wire ensures rapid heating; avoid prolonged exposure that could degrade the polyurethane wire enamel. Lead-free compatible — no exemptions required under RoHS Directive 2011/65/EU.
• Mechanical Securing: After electrical verification and RF tuning, secure the coil body with a micro-dot of low-dielectric RF adhesive (εᵣ < 3.0, low loss tangent at operating frequency). This immobilization prevents microphonic detuning under vibration per IEC 60068-2-6 and acoustic noise excitation, which can be particularly problematic in fan-cooled base station equipment.
• Storage: ESD-safe carriers at 15-30°C and 30-70% RH. Indefinite shelf life under recommended conditions. No moisture sensitivity classification — the polyurethane enamel copper wire is inherently humidity-tolerant.

Key Specifications

Broadband Characterization (10MHz-26.5GHz): While the recommended operating band is 5-20GHz, every production lot supports full 2-port S-parameter characterization spanning 10MHz to 26.5GHz — over four decades of frequency coverage. This ultra-wideband dataset is especially valuable for broadband bias tee designs where the inductor must present high impedance from the lowest modulated signal frequency through the highest harmonic. Per-lot S2P Touchstone files include 201 frequency points with S11 (reflection), S21 (transmission), magnitude, and phase data for accurate co-simulation in ADS, HFSS, and Microwave Office environments.

Environmental Durability

• Temperature Cycling (-55°C to +125°C): The air core inductor has fundamentally superior thermal cycling endurance compared to ferrite-core alternatives. With no ferrite-to-copper CTE mismatch (the dominant failure mechanism in ferrite inductors under thermal cycling), the HALA0600503R exhibits zero inductance shift after 1000 cycles of -55°C/+125°C thermal shock per JEDEC JESD22-A104. The free-space permeability μ₀ = 4π*10⁻⁷ H/m is a temperature-independent fundamental constant — inductance does not change with temperature.
• Damp Heat (85°C/85%RH): The polyurethane enamel on the 0.05mm copper wire resists moisture absorption. Post-assembly conformal coating provides additional protection for the solder joint and lead-to-coil transition zones. Outdoor-installed equipment (base stations, small cells) benefits from this inherent moisture tolerance.
• Mechanical Robustness: The low mass of the 6-turn helical coil (approximately 0.5mg total) places its mechanical self-resonance frequency in the ultrasonic range — well above the 10-2000Hz vibration spectrum specified in IEC 60068-2-6. Fatigue risk from broadband vibration excitation is inherently minimal.

Applications

• 5G FR2 Phased-Array Beamformers: 7nH bias tee inductor per channel. Zero saturation at 200mA per PA element ensures consistent inter-channel impedance matching across 16-64 element arrays. Perpendicular mounting maintains >30dB channel isolation at 28GHz.
• GaN-on-SiC Power Amplifier Bias Networks: 28V/300mA drain bias with zero inductance degradation. Air-core construction eliminates the temperature-compensated biasing circuits required when ferrite permeability shifts across -55°C to +125°C.
• Optical Transceiver Laser Bias (100G/400G/800G): 7nH bias choke for EML and DML laser drivers at 80-120mA bias. Ultra-high SRF >20GHz supports clean bias injection without introducing parasitic resonances in the 25-56Gbaud data bandwidth.
• Automotive Radar (76-81GHz): Consistent inductance across -40°C to +125°C under-hood temperature range. The μᵣ = 1.0 air core provides inherently zero temperature coefficient of inductance, unlike ferrite whose permeability shifts 50-100ppm/°C.
• Broadband Test & Measurement Equipment: S2P data provided per lot enables de-embedding of inductor response from VNA measurements. Air-core construction ensures repeatable broadband behavior from 100MHz to 26.5GHz without ferrite resonance artifacts.

Contact us for evaluation samples, per-lot S2P Touchstone data, or to discuss custom inductance values and coil geometries for your specific application requirements.
