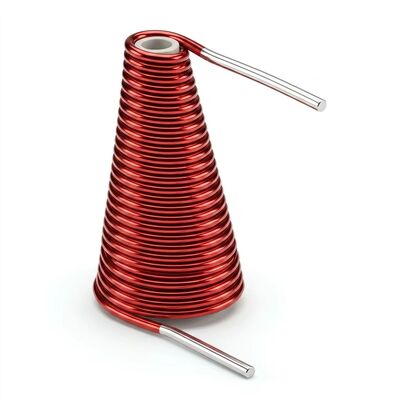

Bias Tee Conical Inductor Through Hole / Surface Mount Wideband Choke Minimal Parasitic Capacitance

Industry Context: The Wideband Imperative

The global shift toward software-defined radio (SDR), multi-band 5G-Advanced (3GPP Release 18), and cognitive electronic warfare systems is driving unprecedented demand for RF components that perform across multiple octaves without degradation. Traditional narrowband bias tee designs, typically optimized for a single octave, require discrete inductor banks and RF switches to cover wide frequency ranges — increasing BOM cost, PCB area, and insertion loss. The HALT20008 conical inductor solves this challenge with a single, resonance-free component covering 200MHz to 40GHz — over 7.6 octaves of clean, flat impedance response.

Why Conical Geometry Wins

Standard spiral inductors suffer from a fundamental limitation: as frequency increases, inter-winding capacitance creates a self-resonant peak within the operating band, rendering the device unusable near and above the self-resonant frequency (SRF). The HALT20008 conical architecture eliminates this by progressively increasing turn diameter from the first winding (handling the highest frequencies) to the last winding (providing low-frequency inductance), distributing parasitic capacitance across the entire frequency continuum. No SRF exists within the operating band.

Performance Benchmark: HALT20008 vs. Conventional Solutions

How to Select Your HALT20008 Configuration

Step 1 — Determine Required Inductance: For bias tee applications, minimum inductance L_min = (50Ω) / (2π * f_low). For f_low = 200MHz, L_min ≈ 40nH. Select the HALT20008 variant with nominal inductance at least 1.5* L_min to ensure adequate RF choke impedance.

Step 2 — Verify DC Current Rating: Confirm the selected variant's rated DC current exceeds your maximum bias current by at least 30% for derating. The HALT20008 series supports 100mA to 500mA depending on inductance value.

Step 3 — Choose Package Size: 0603 for ultra-compact designs (sub-6GHz emphasis), 0805 for general-purpose broadband, 1206 for highest current handling. All packages share identical RF performance characteristics.

Step 4 — Validate PCB Layout: For optimal performance above 20GHz, maintain RF trace length under 2mm from inductor pad to RF connector. Use grounded coplanar waveguide (GCPW) topology with continuous reference plane on layer 2.

Real-World Performance: Customer Deployments

• 5G NR FR2 Base Station (n257 band, 26.5–29.5GHz): A Tier-1 telecom equipment manufacturer replaced a discrete switched-inductor bias tee network (4 inductors + SP4T switch) with a single HALT20008, reducing bias tee insertion loss from 2.1dB to 0.4dB at 28GHz while cutting BOM cost by 62% and board area by 58%.
• Electronic Warfare IFM Receiver (2–18GHz): A defense contractor integrated the HALT20008 into a wideband IFM front-end, achieving ±0.3dB amplitude flatness across the full 2–18GHz band — a 6* improvement over the previous discrete inductor design — enabling reliable pulse parameter measurement without calibration lookup tables.
• LEO Satellite Downconverter (10.7–12.75GHz Ku-band): In a commercial LEO satellite payload, the HALT20008 bias tee survived 1,500 thermal cycles (-40°C to +85°C) during qualification with zero parametric drift, meeting the 7-year mission life requirement without redundant design.

Manufacturing Excellence

Every HALT20008 conical inductor is manufactured in an ISO 9001:2015 certified facility using automated precision winding equipment with ±2μm turn-to-turn placement accuracy. The gold-on-nickel termination system undergoes 100% wire-bond pull testing (>8g minimum) and 100% S-parameter characterization from 10MHz to 43.5GHz using Keysight PNA-X vector network analyzers calibrated to NIST-traceable standards. Each production reel is serialized with full lot traceability to raw material batches.

Technical Specifications

Frequently Asked Questions

How does a conical inductor differ from a standard chip inductor?

A standard chip inductor uses uniform-diameter spiral windings, creating a self-resonant peak when inter-winding capacitance resonates with inductance. The HALT20008 uses progressively increasing turn diameters, distributing parasitic capacitance across a frequency continuum and eliminating any single resonant peak — enabling true broadband operation from 200MHz to 40GHz.

What is the typical insertion loss using the HALT20008 in a bias tee?

When properly impedance-matched in a 50Ω system, the HALT20008 contributes less than 0.3dB at 20GHz. Complete bias tee insertion loss (including DC blocking capacitor and PCB traces) typically ranges from 0.5dB to 1.2dB across 200MHz–40GHz, depending on capacitor selection and layout quality.

Can the HALT20008 operate above 40GHz?

The HALT20008 is guaranteed from 200MHz to 40GHz. Above 40GHz, parasitic effects gradually increase; many customers report acceptable performance to 50GHz in non-critical paths. For mmWave applications above 40GHz, contact our engineering team for application-specific guidance.

What PCB layout yields best bias tee performance?

Use grounded coplanar waveguide (GCPW) at 50Ω characteristic impedance. Keep RF trace from inductor pad to connector under 2mm. Place DC blocking capacitor within 1mm of the inductor pad. Maintain continuous ground plane on layer 2 with no splits under the bias tee area. For designs above 20GHz, use low-loss laminate (Rogers RO4350B or equivalent, Df < 0.004 at 10GHz).

How do I choose between 0603, 0805, and 1206 packages?

All three package sizes share identical RF performance. Select 0603 for maximum board density and sub-6GHz emphasis; 0805 for a balance of size and assembly yield; 1206 for highest DC current handling (up to 500mA) and easiest manual prototyping.
