1800nH Broadband Inductors Bias Tee Custom Inductor Custom Configurable

1800nH Broadband Inductors Bias Tee Custom Inductor Custom Configurable

Brand Name: Hoan
Model Number: HALT60008
MOQ: 10 Pieces
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 50000 Pieces per Month
Detail Information
Place of Origin:
China
Certification:
ISO 9001:2015
Nominal Inductance:
1800 NH ±20% (@10MHz, 0.1Vrms, 25°C)
Self-Resonant Frequency (SRF):
>20.0 GHz (Flat, Resonance-free)
Storage Temperature & RH:
20-25°C, 40%-60% RH (Cleanroom)
Guaranteed Shelf Life:
1 Year
Insertion Loss (10-500MHz):
<0.15 DB
Supply Ability:
50000 Pieces per Month
Highlight:

1800nH Broadband Inductors

,

Bias Tee Custom Inductor

,

Custom Configurable Broadband Inductors

Product Description

Product Overview

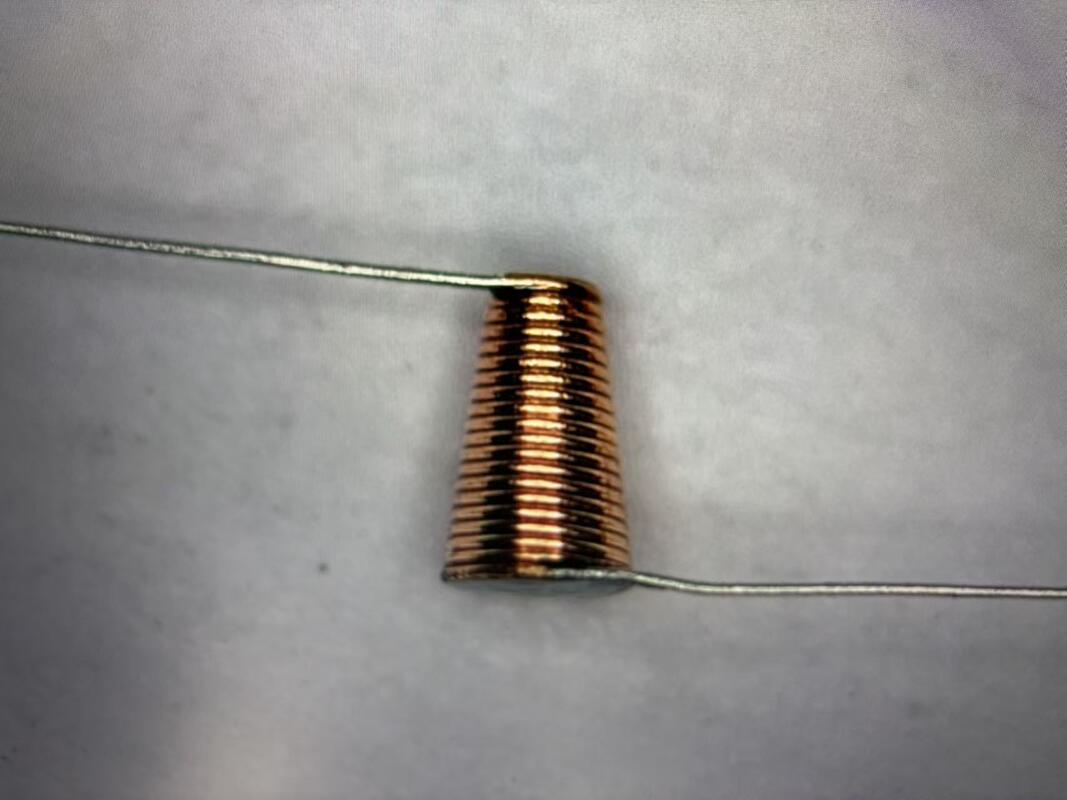

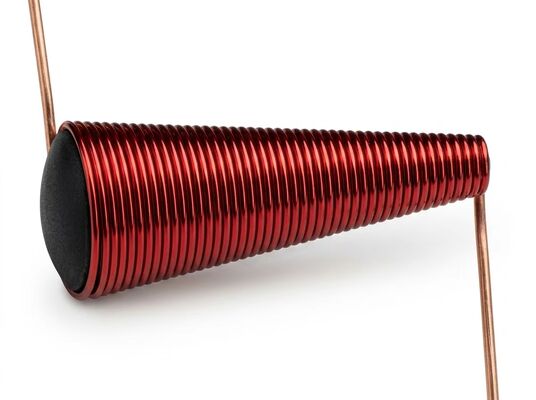

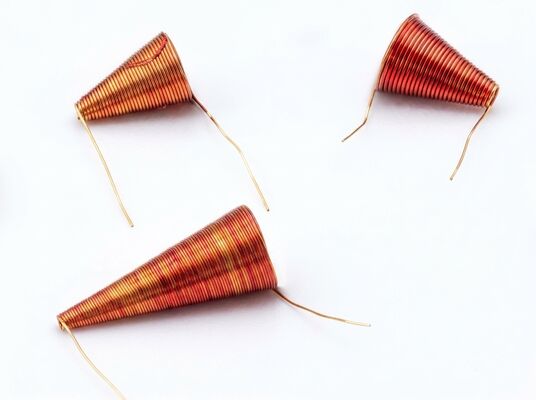

The HALT60008 is a broadband conical inductor for production programs requiring consistent RF performance, configurable specifications, and predictable supply chain logistics. It delivers 1800 nH (1.8 µH) of nominal inductance with a ±20% tolerance at 10 MHz, wound with 0.08 mm (80 µm) oxygen-free copper wire in a continuously tapered air-core conical geometry.

The conical winding distributes parasitic turn-to-turn capacitance along the 3.0 mm winding length rather than concentrating it at a single LC product. This enables flat, resonance-free RF isolation from 10 MHz to 20 GHz in a single component—replacing the 3–5 cascaded inductors and their associated junction resonances that conventional broadband bias tee designs require.

Rated for 500 mA of continuous DC bias current (temperature rise limited to ΔT ≤ 15°C), the HALT60008 supports bias networks for GaN and GaAs power amplifiers, high-current optical transceiver laser drivers, and PIN diode switch DC return paths. The air-core architecture ensures inductance remains stable across the full 0–500 mA DC range with no magnetic saturation effects. Operating temperature spans -55°C to +125°C for industrial and defense applications.

The manufacturing process uses optically guided closed-loop winding with automated taper profile control, maintaining CpK values exceeding 1.67 for critical dimensions. Each production lot undergoes sample-based VNA acceptance testing on a characterized microstrip fixture with TRL de-embedding. A Certificate of Conformance (CoC) documenting lot number, date of manufacture, and test results ships with each order.

The HALT60008 supports custom configuration of inductance value (50–2000 nH), wire gauge (0.05–0.12 mm), lead finish (gold/tin, bare copper, enhanced gold), and packaging format (waffle pack, tape-and-reel, gel-pack). Quick-turn prototyping is available in 3–4 weeks for custom values with a 50-piece minimum. Standard production lead time is 15–25 working days. Full .s2p Touchstone data, 3D STEP models, and parameterized HFSS EM models are available for PCB co-simulation.

Technical Specifications

Category Parameter Guaranteed Value Test / Measurement Conditions
Electrical Nominal Inductance 1800 nH ±20% 10 MHz, 0.1 Vrms, 25°C
Electrical Self-Resonant Frequency (SRF) >20.0 GHz Flat, resonant-free high-impedance curve
Electrical Maximum Continuous Current 500 mA Rated at ΔT ≤ 15°C temperature rise
Electrical Recommended Frequency Band 0.010 – 20.0 GHz Broadband RF decoupling, bias tee
Electrical Reference Frequency Band 0.01 – 40.0 GHz With calibration fixture compensation
Physical Overall Coil Length 3.0 mm Typical length of wound cone section
Physical Winding Wire Diameter 0.08 mm (80 µm) Fine copper wire for high-current capacity
Physical Lead Wire Finish Gold / Tin Plated Enhances micro-soldering and gold wire wedge bonding
Physical Design Architecture Air-core Conical Coil Tapered winding with dual straight flying leads
Assembly Mount Style Flying Lead Welding Suitable for eutectic soldering / micro-soldering
Assembly Adhesive Stabilization Epoxy Glue Fixing (mandatory) Must be dot-epoxied to prevent vibration
Reliability Operating Temperature -55°C to +125°C Industrial & Strategic Grade
Reliability Storage Temperature & RH 20–25°C, 40–60% RH Cleanroom environment
Reliability Guaranteed Shelf Life 1 Year Under optimal storage conditions
Design Support Simulation Data .s2p Touchstone + 3D Models 10 MHz–20 GHz, VNA-characterized, fixture-de-embedded

Multi-Frequency Performance (Production Acceptance Test)

Each production lot undergoes sample VNA verification on a characterized microstrip calibration fixture:

Frequency Spectrum Attenuation / Impedance Production Acceptance Criterion
10 MHz – 500 MHz Extremely high inductive reactance; insertion loss < 0.15 dB Low-frequency blocking verified; supply noise isolation confirmed
10 MHz – 15 GHz Flat, continuous isolation; no major dip or resonant peak > 2.0 kΩ RF isolation; flat S21 across rated band
10 MHz – 20 GHz High-frequency response maintained to 20 GHz Microwave performance verified; pad-limited above 18 GHz per fixture design

Standard Ordering Information

Order Type Typical Lead Time Minimum Order Quantity Supply Capacity
Engineering Samples 3 working days 10 pieces In-stock inventory maintained
Prototype / Small Batch 15–25 working days 100 pieces 50,000 pieces per month
Volume Production 8–12 weeks (negotiable with forecast) 1,000 pieces Scalable; expandable with demand

Custom Configuration Options

The conical inductor platform supports parameter adjustments for application-specific requirements. The following parameters are configurable for qualified production volumes.

Inductance Value

Custom inductance values from 50 nH to 2000 nH are achievable by adjusting turn count and winding profile. Higher inductance values trade off upper frequency; lower inductance values trade off low-frequency isolation. Quick-turn prototyping (3–4 weeks) is available for custom values with a minimum order of 50 pieces.

Wire Gauge Selection

Option Continuous DC Current Upper Frequency Limit Primary Use Case
0.05 mm (ultra-fine) 200 mA 40 GHz Maximum bandwidth, low-current bias
0.08 mm (fine, standard) 500 mA 20 GHz Balanced current and bandwidth
0.10 mm (custom) ~700 mA (estimated) ~15 GHz (estimated) Higher current, reduced bandwidth
0.12 mm (custom) ~1.0 A (estimated) ~10 GHz (estimated) Maximum current for lower-frequency applications

Lead Finish and Packaging Options

  • Standard: Gold / Tin plated copper leads, anti-static waffle pack
  • Bare Copper: For AuSn eutectic die-attach processes in hermetic packages
  • Selective Gold Flash: Enhanced bonding surface for automated thermosonic wedge bonding
  • Enhanced Gold Thickness: For high-reliability Defense and space-grade bonding requirements
  • Packaging: Tape-and-reel, gel-pack, or custom waffle trays available for automated assembly lines

Quality Documentation and Certifications

  • Certificate of Conformance (CoC): Included with each shipment. Documents lot number, date of manufacture, and sample VNA acceptance test results.
  • Full S-Parameter Report: Per-unit or per-lot .s2p data files available upon request. Includes fixture characterization and TRL de-embedding documentation.
  • Material Certifications: Oxygen-free copper purity certification and polyimide insulation datasheet provided upon request.
  • Regulatory Compliance: RoHS and REACH compliant. Declarations available for customs clearance documentation.

Payment, Shipping, and Logistics

Term Standard Offering
Accepted Payment Methods L/C, D/A, D/P, T/T, Western Union
Shipping Incoterms FOB, CIF, EXW (negotiable per contract)
Minimum Order Quantity 10 pieces (samples); 100 pieces (standard production)
Monthly Production Capacity 50,000 pieces, expandable with demand forecast
Customs Documentation Commercial invoice, packing list, Certificate of Origin, CoC

Assembly and Integration

  1. Physical Alignment: Position the small end (cone tip) of the inductor perpendicular (≈90°) to the RF transmission microstrip line. Off-perpendicular orientation degrades S11 above 15 GHz.
  2. Apex Lead Connection: Solder the apex flying lead to the 50-Ω microstrip trace. Trim the lead between solder fillet and first winding turn to ≤0.3 mm. At 20 GHz, excess lead length introduces parasitic series inductance.
  3. Base Lead to DC Bias Node: Solder the wide base lead to the DC bias input pad. Place 100 pF in parallel with 10 nF ceramic bypass capacitors within 1 mm of this pad.
  4. Epoxy Stabilization: Apply a single micro-dot (~0.3 mm diameter) of non-conductive, low-outgassing epoxy (Epotek H70E or H65) to the side of the winding. This step is mandatory to prevent microphonic vibration in field-deployed systems.
  5. Soldering Profile: Controlled micro-soldering tip at 280–320°C for ≤3 seconds per joint. Fully compatible with lead-free SAC305, high-melting-point eutectic AuSn, and standard PbSn solder alloys.

Frequently Asked Questions

Q: What is the minimum order for a custom inductance value?
A: Custom inductance prototyping requires a minimum of 50 pieces and typically ships within 3–4 weeks. Production volumes for custom values start at 500 pieces depending on winding profile complexity.

Q: Can Hoan support consigned inventory programs?
A: Yes. For annual volumes exceeding 100,000 pieces, Hoan offers consigned inventory with monthly call-off, buffer stock maintained at Hoan facility, and 72-hour emergency shipment upon request. Contact Hoan sales to discuss terms and forecast requirements.

Q: Are fully characterized samples available before committing to a production order?
A: Yes. Engineering sample quantities (10–50 pieces) can be ordered with complete .s2p characterization data. Each sample lot is measured on the same calibrated VNA microstrip fixture used for production acceptance testing, providing directly comparable data.

Q: What warranty coverage is provided?
A: Hoan warrants the HALT60008 series against defects in materials and workmanship for 12 months from the date of shipment when stored under recommended conditions (20–25°C, 40–60% RH) in original anti-static packaging.

Q: How does the HALT60008 differ from other HALT60008 variants?
A: All HALT60008-series inductors share identical core specifications (1800 nH, 0.08 mm wire, 10 MHz–20 GHz, 500 mA). The HALT60008 provides complete ordering, customization, and supply chain documentation—including wire gauge selection table, lead finish options, packaging configurations, quality documentation requirements, and payment/logistics terms. Other variants (A–G) provide application-specific technical and evaluation guidance.
