160nH Broadband Inductors Fine Wire RF Choke Inductor 100MHz - 22GHz

160nH Broadband Inductors Fine Wire RF Choke Inductor 100MHz - 22GHz

Brand Name: Hoan
Model Number: HALT25008
MOQ: 10
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Place of Origin:
china
Overall Dimensions:
HALT25008
Product Category:
Broadband Conical Inductor
Standard Max Current:
500 MA (0.08mm Wire)
Assembly SOP:
Small End Perpendicular To RF Line, Lead As Short As Possible, Side Epoxied
Qfactor:
50
Tolerance:
±5%
Currentrating:
2 A
Highlight:

160nH Broadband Inductors

,

Fine Wire RF Choke Inductor

,

22GHz Broadband Inductors

Product Description

High-Frequency Technical Summary

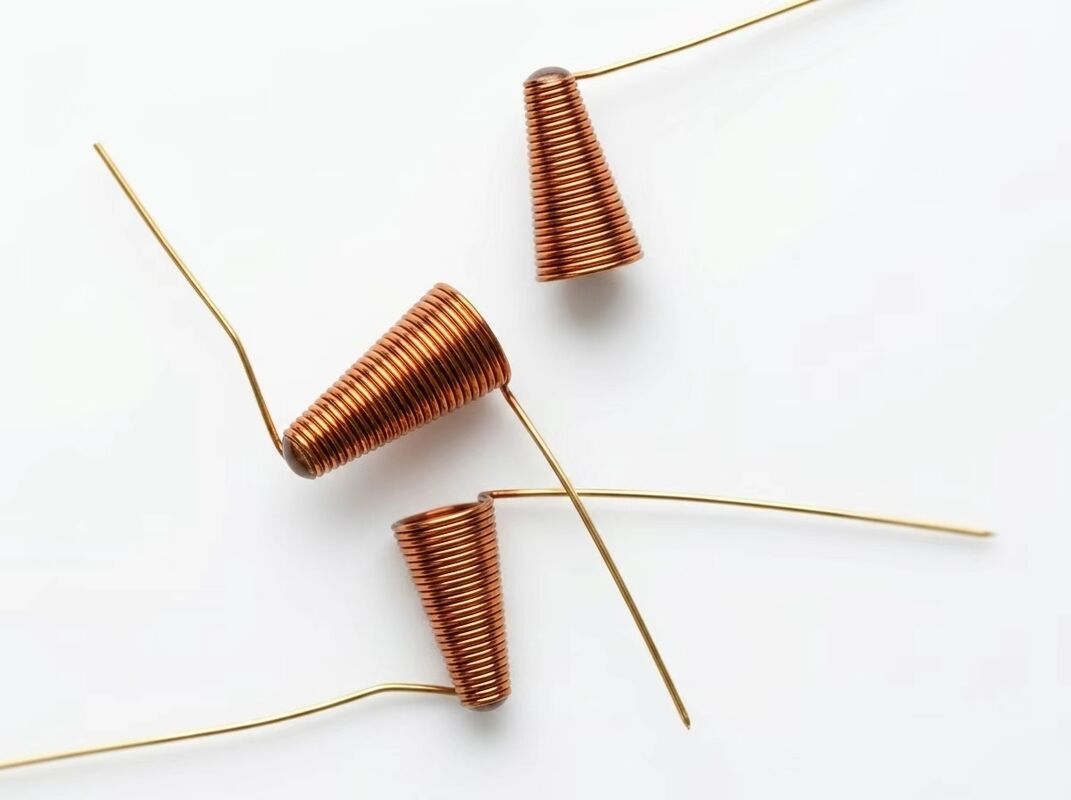

   The HALT25008 is a specialized, ultra-broadband Conical Inductor designed for high-performance bias-tees, RF decoupling, and broadband microwave filtering. Delivering a nominal inductance of 160 nH ± 20% and operating over an extended frequency band of 100 MHz to 22.0 GHz (with usable reference performance reaching up to 40.0 GHz), this inductor is wound with an ultra-fine 0.08 mm (80 µm) copper wire and is rated for a continuous DC current of 500 mA.

   The engineering architecture of the HALT25008 is optimized for low parasitic capacitance. By utilizing a tighter, fine-wire winding structure, this model achieves a lower starting frequency (100 MHz compared to 200 MHz on heavy-wire designs) and pushes the upper operational bandwidth to 22.0 GHz. It is highly suitable for high-speed fiber-optic optical transceivers (TOSA/ROSA), broadband test documentation, and high-frequency amplifiers.


Key Performance Advantages
   •Extended Ultra-Broadband Performance (100 MHz - 22 GHz): Provides a broader bandwidth than standard heavy-wire inductors, delivering stable RF isolation down to 100 MHz.
   •Precision Fine-Wire Winding (0.08 mm): Micro-precision winding reduces inter-turn parasitic capacitance, shifting self-resonant frequencies (SRFs) upwards for a smooth, dip-free insertion-loss curve.
   •Highly Optimized Current Density: Carries up to 500 mA of continuous DC bias despite its microscopic 0.08 mm wire size, thanks to high-purity oxygen-free copper and high-thermal-rating polyimide insulation.
   •Air-Core Saturation-Free Design: Possesses an air-core architecture that prevents magnetic saturation, maintaining absolute inductance stability across the entire current and RF power envelope.
   •Solderable Flying Leads: Features highly conductive, easy-to-weld wire leads on both the small end and large end, facilitating clean interconnect bonding on RF microstrips.


Overall Dimensions

160nH Broadband Inductors Fine Wire RF Choke Inductor 100MHz - 22GHz


Comprehensive Parameter Datasheet

Specifications Category Technical Parameter Name Guaranteed Values Testing/ Measurement Conditions
Electrical Specs Nominal Inductance 160 ηH (+20% Tolerance @ 10 MHz,0.1Vrms, 25°C)
Self-Resonant Frequency (SRF) > 22.0 GHz (Flat, resonant-free high- impedance curve)
Maximum Continuous Current 500 mA (Rated at ΔT < 15°C temperaturerise)
Recommended Frequency Band 0.1-22.0 GHz (Broadband RF decoupling, Bias-Tee)
Reference Frequency Band 0.01-40.0 GHz (With calibration fixture compensation)
Physical Geometry Overall Coil Length 3.0 mm (Typical length of the wound cone section)
Nominal Winding Wire Diameter 0.08 mm (Ultra-fine copper wire for low parasitics)
Lead Wire Finish Gold/Tin Plated Enhances micro-soldering and gold wire wedge bonding
Design Architecture Air-core Conical Coil Tapered winding with dual straight flying leads
Assembly Processes Mount Style Flying Lead Welding Suitable for eutectic soldering/ micro-soldering
Adhesive Stabilization Epoxy Glue Fixing Must be dot-epoxied to prevent vibration
Reliability & Quality Operating Temperature -55 to +125  ℃ (Industrial & Strategic Grade)
Storage Temperature & RH 20-25°C,40%-60% RH Cleanroom environment


Multi-Frequency Operational Performance Breakdown

The HALT25008 undergoes strict vector network analyzer (VNA) testing using microstrip calibration fixtures. Itsbroadband impedance and attenuation performance are categorized into three major frequency segments:

Frequency Spectrum Attenuation/Impedance Characteristic Technical Application & Fixture Engineering Notes
10 MHz - 500MHz Rapid transition to high inductive impedance; insertion loss < 0.12 dB. Provides critical low-frequency filtering in thetransition band, blocking noise from entering DCbias rails.
10 MHz - 22GHZ Smooth, exceptionally flatattenuation curve; free of parallel resonant dips. The official rated operating range for broadbandbias-tees. Delivers stable > 1.2 kO RF isolation.
10 MHz - 40GHz Extended ultra-high frequencyresponse (Usable for reference). Fixture parasitic factors increase at > 25 GHz,making measurements less accurate; recommendedfor reference only.


Comparative Technical Matrix (HALT25008 vs. HALT20015)

Understanding the performance difference between these two 16onH conical inductors is essential for propercircuit selection:

Engineering Parameter Fine-Wire Conical Inductor(HALT25008) Standard ConicalInductor (HALT20015) Engineering Trade-off &Application Guideline
Winding Wire Diameter 0.08 mm (80 μm) 0.15 mm (150 μm) HALT25008 uses a thinner wire,resulting in a more compact andprecise winding structure.
Maximum DC Current 500mA 800 mA HALT20015 has a larger wiregauge, enabling higher current-carrying capacity.
Lower Frequency Limit 100 MHz 200 MHz HALT25008 is optimized to startshielding at lower frequencies.
Upper Frequency Limit 22.0 GHz 20.0 GHz The fine wire of HALT25008reduces inter-turn capacitance,extending the upper frequency limit.
Parasitic Capacitance Lower. Reduced surfacearea of fine wire minimizes capacitance. Standard HALT25008 provides a flatter broadband impedance curve.
Ideal Application Low-current broadband bias-tees, optical
transceivers (TOSA/ROSA).
High-power amplifiers (PA), RFpower stages. Choose based on the maximum current draw of the MMIC or laserdiode.


FAQ
Q1: Why does the HALT25008 have a broader frequency bandwidth than the HALT20015?
  A:The frequency bandwidth of a conical inductor is constrained by its parasitic parameters. Because the HALT25008 is wound with an ultra-fine 0.08 mm wire (compared to 0.15 mm on the HALT20015), the physical surface area of the winding is much smaller. This significantly reduces the inter-turn parasitic capacitance. Less parasitic capacitance shifts the self-resonant frequency (SRF) upwards, allowing the inductor to maintain a high-impedance state from a lower 100 MHz start all the way up to 22.0 GHz.

Q2: What happens if the conical inductor is not secured with epoxy?
  A:At microwave frequencies, physical stability is electrical stability. Without epoxy fixing, the air-core coil can vibrate due to environmental acoustic or mechanical resonance. These micro-vibrations change the spacing between the winding turns, causing modulation of the inductance (microphonic effect) and introducing phase noise into the RF signal. Point-epoxy stabilization is mandatory for high-reliability Strategic and telecommunication assemblies.

Q3: Can the HALT25008 be used with automated wire bonding equipment?
  A:Yes. The straight, gold-plated copper flying leads of the HALT25008 are optimized for automated thermo-compression or thermosonic wedge bonding, as well as high-precision automated micro-soldering, making it fully compatible with high-speed surface mount technology (SMT) and hybrid microcircuit assembly lines.
